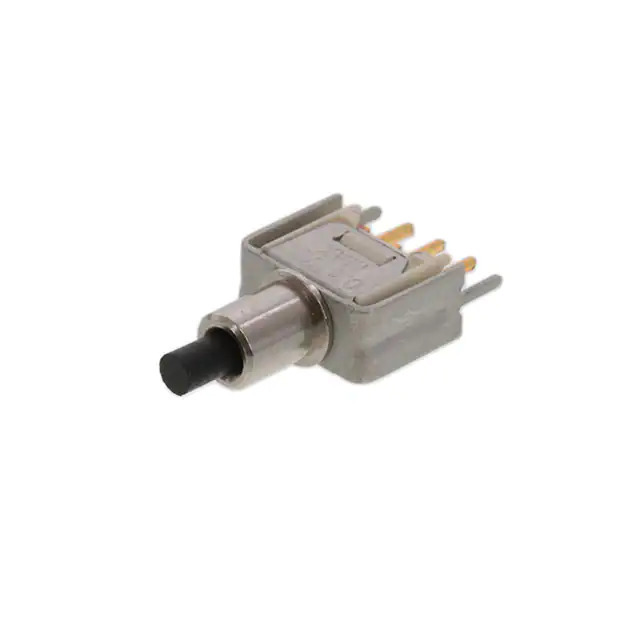

TP12SH9V3BE C&K Components
Same model may have multiple batches, images only for reference.

TP12SH9V3BE

Part No TP12SH9V3BE
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
Datasheet
TP12SH9V3BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series TP
Package Bulk
Product Status Active
Mounting Type Through Hole
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round, Plunger
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features Sealed
Panel Cutout Dimensions -
Temperature Range - Operating -30°C ~ 85°C
Mechanical Life -
Electrical Life 30,000 Cycles
Base Product Number TP12S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376058-TP12SH9V3BE
Ultra Librarian 3D Model Ultra Librarian TP12SH9V3BE CAD Model

Description

The TP12SH9V3BE is a standard pushbutton switch from C&K's TP series.

  • Actuator Type: Round, Plunger
  • Actuator Color: Black
  • Circuit: SPDT
  • Switch Function: On-Momentary
  • Voltage Rating: 20V AC and 20V DC
  • Current Rating: 0.4VA (AC and DC)
  • Features: Sealed
  • Mounting Type: Through-Hole
  • Termination: PC Pin
  • Mechanical Life: 30,000 cycles
  • Temperature Range: -30°C to 85°C
  • Product Status: Active
  • Packaging: Bulk
