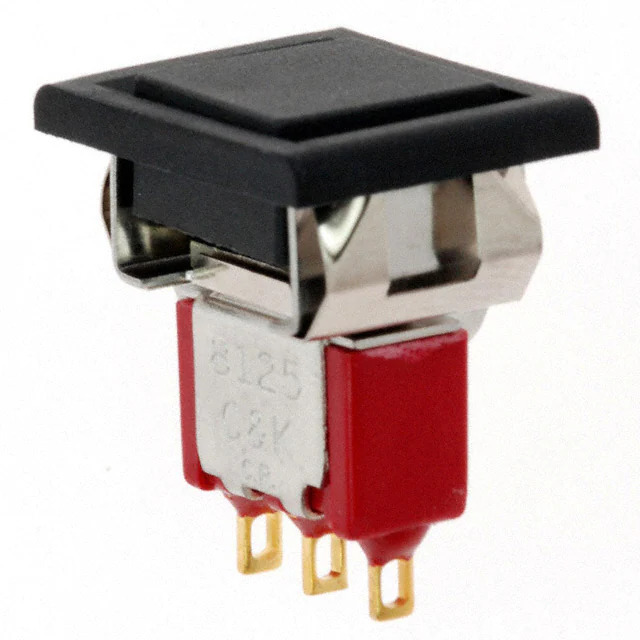

8125J83ZBE22 C&K Components
Same model may have multiple batches, images only for reference.

8125J83ZBE22

Part No 8125J83ZBE22
Manufacturer C&K Components
Catalog Pushbutton Switches
Description SWITCH PUSH SPDT 0.4VA 20V
Datasheet
8125J83ZBE22 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Pushbutton Switches
Mfr C&K
Series 8020
Package Tray
Product Status Active
Mounting Type Panel Mount, Snap-In
Type Standard
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Square, Button, Flush
Actuator Marking No Marking
Color - Actuator/Cap Black
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Ingress Protection -
Features Tactile Feedback
Panel Cutout Dimensions Rectangular - 15.24mm x 12.70mm
Temperature Range - Operating -30°C ~ 75°C
Mechanical Life -
Electrical Life 60,000 Cycles
Base Product Number 8125J83
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1376074-8125J83ZBE22
Ultra Librarian 3D Model Ultra Librarian 8125J83ZBE22 CAD Model

Description

The 8125J83ZBE22 is a pushbutton switch manufactured by C&K.

  • Series: 8020
  • Mounting Type: Panel Mount, Snap-In
  • Panel Cutout Dimensions: 15.24mm x 12.70mm
  • Tactile Feedback: Yes
  • Current Rating: 0.4VA (AC/DC)
  • Operating Temperature Range: -30°C to 75°C
  • Circuit Configuration: SPDT
  • Voltage Rating (AC): 20V AC
  • Voltage Rating (DC): 20V DC
  • Actuator Type: Square and Flush
  • Color: Black
