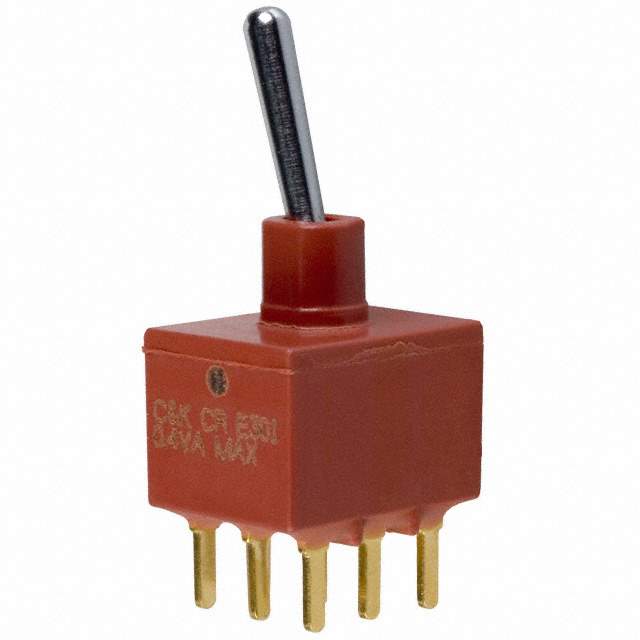

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Toggle Switches
Mfr C&K
Series E
Package Tray
Mounting Type Through Hole
Circuit 3PDT
Switch Function On-On
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Standard Round
Actuator Length 12.70mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Ingress Protection IP57 - Dust Protected, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 30,000 Cycles
Base Product Number E301
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN1526,E301SD1CBE-ND,2266-E301SD1CBE,*E301SD1CBE
Standard Package 40
Win Source Part Number 994431-E301SD1CBE
Ultra Librarian 3D Model Ultra Librarian E301SD1CBE CAD Model

Description

The E series toggle switch from C&K is a 3PDT switch with PC pin termination style.

  • Series: E
  • Switch Type: Toggle
  • Contact Form: 3PDT
  • Termination Style: PC Pin
  • Terminals: epoxy sealed
  • Ingress Protection: IP57 - Dust Protected, Waterproof
  • Actuator Material: brass, chrome plated
  • Circuit: 3PDT
  • Switch Function: on-on
  • Actuator Type: standard round
  • Electrical Life: 30,000 cycles
  • Illumination: non-illuminated
  • Voltage Rating: 20V AC/DC
  • Current Rating: 0.4VA (AC/DC)
  • Temperature Range: -30°C ~ 85°C
  • ECCN: EAR99
  • REACH: affected
