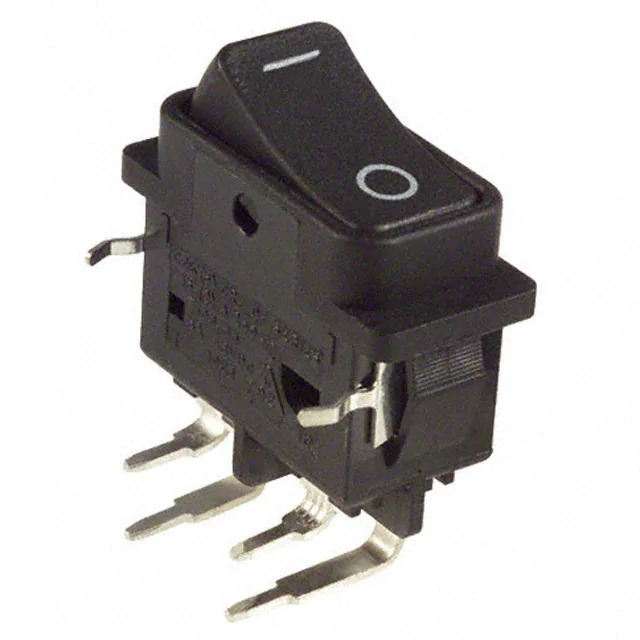

DF62J12S2AHQA C&K Components
Same model may have multiple batches, images only for reference.

DF62J12S2AHQA

Part No DF62J12S2AHQA
Manufacturer C&K Components
Catalog Rocker Switches
Description SWITCH ROCKER DPST 16A 125V
Datasheet
DF62J12S2AHQA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr C&K
Series DF
Package Tube
Product Status Active
Mounting Type Panel Mount, Snap-In, Right Angle
Circuit DPST
Switch Function On-Off
Current Rating (Amps) 16A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 48 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking O I
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style PC Pin
Ingress Protection -
Features -
Panel Cutout Dimensions Rectangular - 26.14mm x 12.50mm
Temperature Range - Operating -20°C ~ 85°C
Mechanical Life -
Electrical Life 10,000 Cycles
Base Product Number DF62J
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376178-DF62J12S2AHQA
Ultra Librarian 3D Model Ultra Librarian DF62J12S2AHQA CAD Model

Description

The DF62J12S2AHQA is a rocker switch from C&K's DF series.

  • Mounting Type: Panel Mount, Snap-In, Right-Angle
  • Current Rating (AC): 16A
  • Current Rating (DC): 6A
  • Circuit: DPST
  • Switch Function: On-Off
  • Voltage Rating (AC): 125V
  • Voltage Rating (DC): 48V
  • Actuator Type: Concave (Curved)
  • Actuator/Cap Color: Black
  • Panel Cutout: 26.14mm x 12.50mm
  • Mechanical Life: 10,000 Cycles
