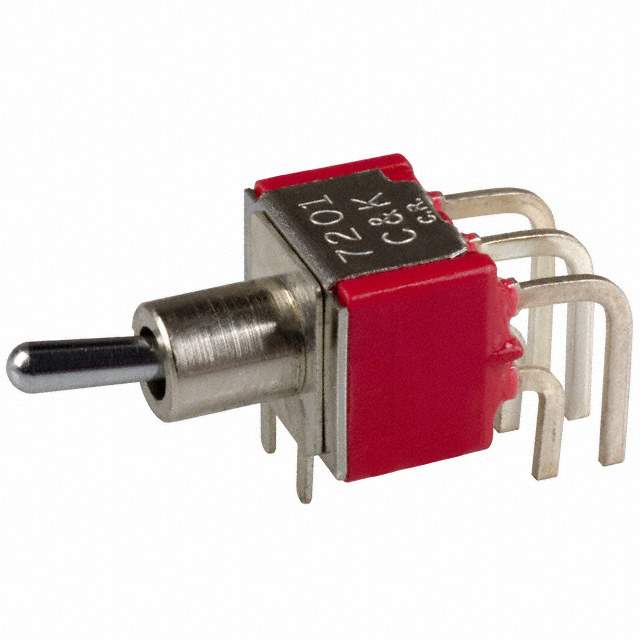

7201MD9AQE Real Image
Same model may have multiple batches, images only for reference.

7201MD9AQE

Part No 7201MD9AQE
Manufacturer C&K Components
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 5A 120V / Toggle Switch DPDT Through Hole, Right Angle
Datasheet
7201MD9AQE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr C&K
Series 7000
Package Tray
Mounting Type Through Hole, Right Angle
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 5A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 6.86mm
Illumination Non-Illuminated
Termination Style PC Pin
Bushing Thread Unthreaded
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 100,000 Cycles
Base Product Number 7201MD
Standard Package 80
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1351150-7201MD9AQE
Ultra Librarian 3D Model Ultra Librarian 7201MD9AQE CAD Model

Description

The 7201MD9AQE toggle switch is a DPDT circuit switch that is on-on in switch function and is manufactured by C&K.

  • Circuit: DPDT
  • Switch Function: On-On
  • Actuator Type: Round
  • Actuator Length: 6.86mm
  • Actuator Material: Brass with chrome plating
  • Electrical Life: 100,000 cycles
  • Illumination: Non-illuminated
  • Sealing: Epoxy sealed
  • Ingress Protection: N/A
  • Voltage Rating: 120V AC and 28V DC
  • Current Rating: 5A (AC/DC)
  • Mounting Type: Through hole
  • Termination Style: Right-angle
  • Temperature Range: -30°C ~ 85°C
