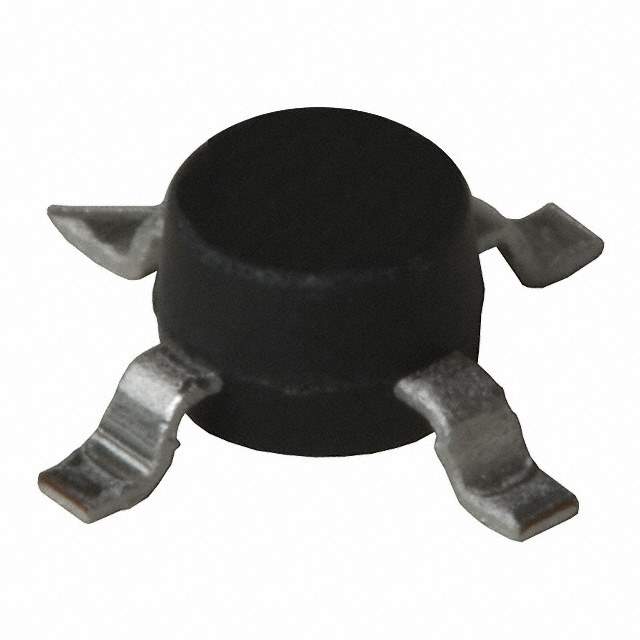

MSA-0686-TR1G Real Image
Same model may have multiple batches, images only for reference.

MSA-0686-TR1G

Part No MSA-0686-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP MMIC BIPOLAR 50MA 86-SMD
Datasheet
MSA-0686-TR1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 0Hz to 800MHz
P1dB 2dBm (1.6mW)
Gain 16.5dB to 18.5dB
Noise Figure 3dB
RF Type ISM, PCS, WLL, 802.16/WiMax
Supply Voltage - Operating 2.8 V to 4.2 V
Operating Supply Current 50mA
Test Frequency 500MHz
Case / Package 86 Plastic Package
Win Source Part Number 131125-MSA-0686-TR1G
Ultra Librarian 3D Model Ultra Librarian MSA-0686-TR1G CAD Model

Description

The Broadcom Limited electronic component with the manufacturer part number 131125-MSA-0686-TR1G is an obsolete (EOL) product with a frequency range of 0Hz to 800MHz.

  • Frequency Range: 0Hz to 800MHz
  • Gain: 16.5dB to 18.5dB
  • Noise Figure: 3dB
  • P1dB: 2dBm (1.6mW)
  • Supply Voltage: 2.8 V to 4.2 V
  • Operating Supply Current: 50mA
  • Application: RF type ISM, PCS, WLL, 802.16/WiMax
  • Package: 86 plastic
  • Mounting: SMD (SMT)
