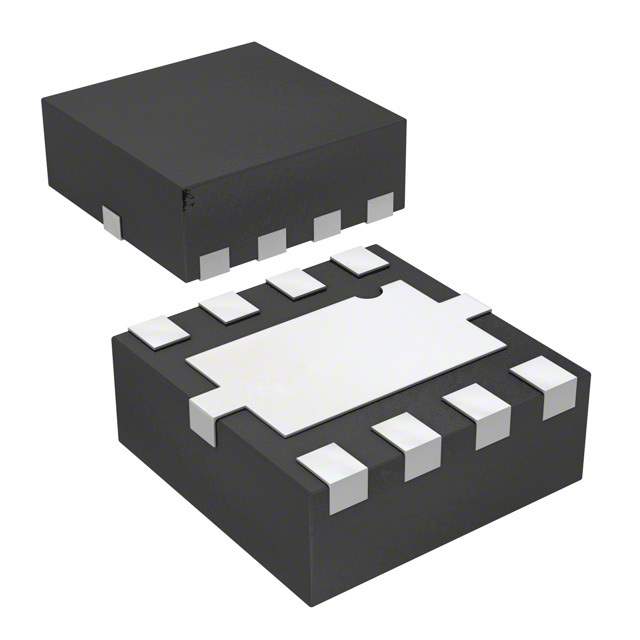

MGA-565P8-BLK Real Image
Same model may have multiple batches, images only for reference.

MGA-565P8-BLK

Part No MGA-565P8-BLK
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP BUFFER RFIC 2GHZ 8-LPCC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Frequency 0Hz to 3.5GHz
Gain 21.8dB
RF Type Cellular, PCS
Supply Voltage - Operating 3 V to 5 V
Operating Supply Current 67mA
Test Frequency 2GHz
Case / Package 8-LPCC (2x2)
Win Source Part Number 058480-MGA-565P8-BLK
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian MGA-565P8-BLK CAD Model

Description

The Broadcom Limited 058480-MGA-565P8-BLK is a high-performance RF amplifier designed for cellular and PCS applications.

  • Gain: 21.8dB
  • Frequency Range: 0Hz to 3.5GHz
  • Popularity: Medium popularity
  • Supply and Demand Status: Limited
  • Supply Voltage: 3V to 5V
  • Operating Supply Current: 67mA
  • Package: 8-LPCC (2x2)
  • Suitable for: Various applications
