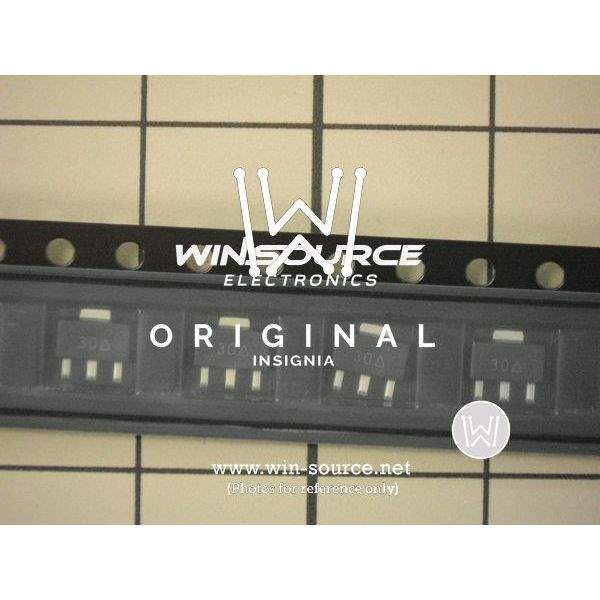

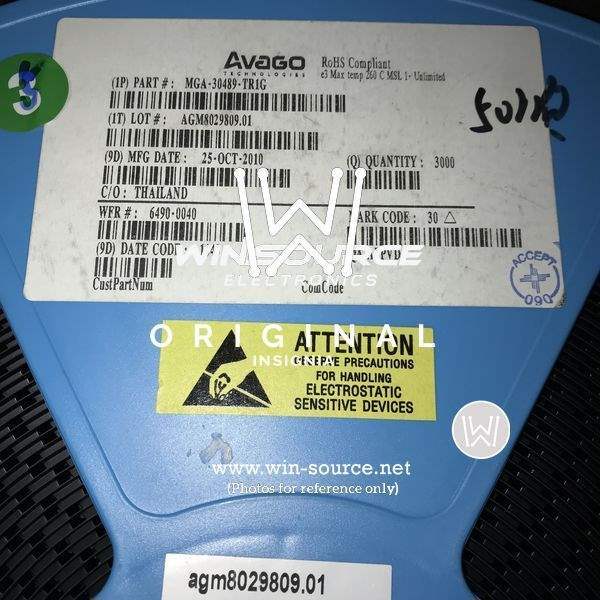

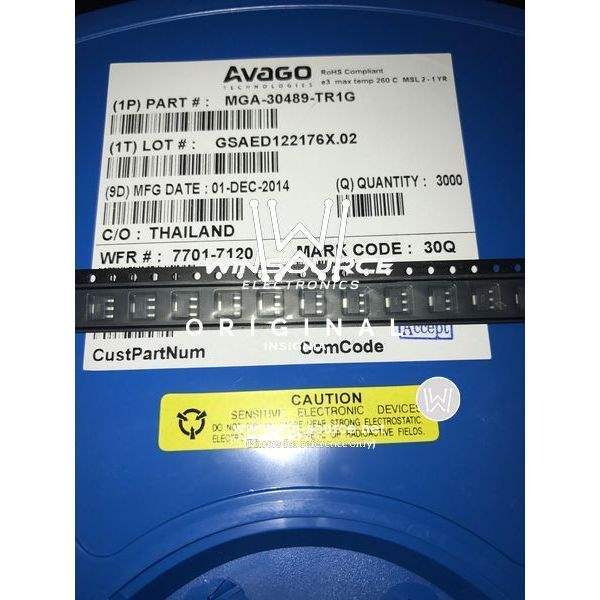

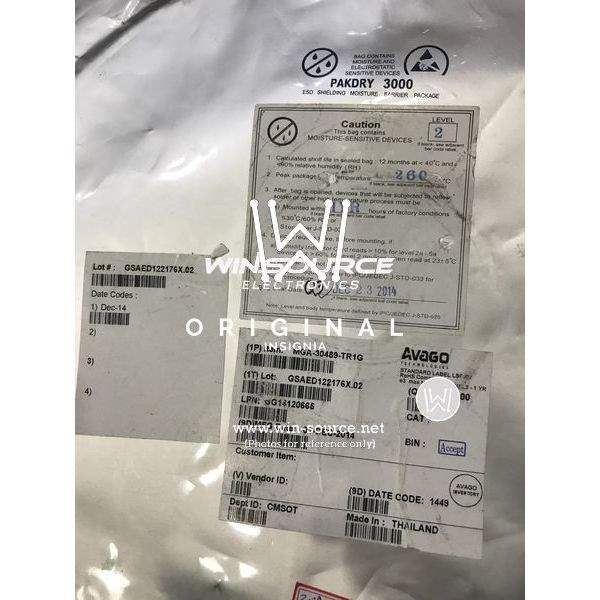

MGA-30489-TR1G Broadcom Limited MGA-30489-TR1G Real Image MGA-30489-TR1G label picture 2 MGA-30489-TR1G real image MGA-30489-TR1G label picture 3 MGA-30489-TR1G real image 2 MGA-30489-TR1G real image 3
Same model may have multiple batches, images only for reference.
MGA-30489-TR1G Broadcom Limited MGA-30489-TR1G Real Image MGA-30489-TR1G label picture 2 MGA-30489-TR1G real image MGA-30489-TR1G label picture 3 MGA-30489-TR1G real image 2 MGA-30489-TR1G real image 3
MGA-30489-TR1G Broadcom Limited MGA-30489-TR1G Real Image MGA-30489-TR1G label picture 2 MGA-30489-TR1G real image MGA-30489-TR1G label picture 3 MGA-30489-TR1G real image 2 MGA-30489-TR1G real image 3
Same model may have multiple batches, images only for reference.

MGA-30489-TR1G

Part No MGA-30489-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC RF AMP DVR 0.25W SOT-89
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Frequency 250MHz to 3GHz
P1dB 23.3dBm (213.8mW)
Gain 13.3dB
Noise Figure 3dB
RF Type Cellular, PCS, W-CDMA, WLLand
Supply Voltage - Operating 8.4V
Operating Supply Current 180mA
Test Frequency 1.9GHz
Case / Package SOT-89-3
Win Source Part Number 1075815-MGA-30489-TR1G
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MGA-30489
Introduction Date January 01, 2009
ECCN 5A991.g
Country of Origin Malaysia, Taiwan, Thailand
Estimated EOL Date Obsolete
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MGA-30489-TR1G CAD Model

Description

The MGA-30489-TR1G is a high-gain amplifier from Broadcom Limited designed for cellular, PCS, W-CDMA, WLL, and other RF/IF and RFID applications.

  • Manufacturer: Broadcom Limited
  • Frequency Range: 250MHz to 3GHz
  • Test Frequency: 1.9GHz
  • Gain: 13.3dB
  • Noise Figure: 3dB
  • P1dB: 23.3dBm (213.8mW)
  • Operating Supply Current: 180mA
  • Popularity: High
  • Supply and Demand: Balanced
