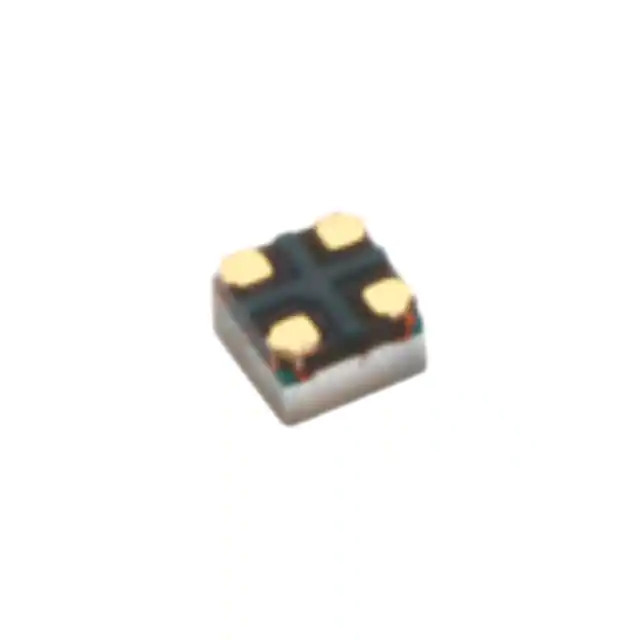

HSMF-C116 Broadcom Limited
Same model may have multiple batches, images only for reference.

HSMF-C116

Part No HSMF-C116
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB TOP MT SMD
Datasheet
HSMF-C116 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Indication - Discrete
Mfr Broadcom Limited
Series -
Package Tape & Reel
Product Status Active
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color -
Lens Transparency -
Millicandela Rating 80mcd Red, 220mcd Green, 45mcd Blue
Lens Style Square with Flat Top
Lens Size 1.05mm
Voltage - Forward (Vf) (Typ) 2V Red, 2.8V Green, 3V Blue
Current - Test 10mA Red, 5mA Green, 5mA Blue
Viewing Angle 137° Red, 140° Green, 140° Blue
Mounting Type Surface Mount
Wavelength - Dominant 622nm Red, 528nm Green, 471nm Blue
Wavelength - Peak 631nm Red, 520nm Green, 466nm Blue
Features -
Package / Case 0404 (1010 Metric)
Supplier Device Package -
Size / Dimension 1.05mm L x 1.05mm W
Height (Max) 0.75mm
Base Product Number HSMF-C116
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1372062-HSMF-C116
Ultra Librarian 3D Model Ultra Librarian HSMF-C116 CAD Model

Description

The HSMF-C116 is a surface mount LED indication component manufactured by Broadcom Limited.

  • Type: Common Anode RGB
  • Lens Style: Square
  • Millicandela Rating: 80mcd (Red), 220mcd (Green), 45mcd (Blue)
  • Forward Voltage: 2V (Red), 2.8V (Green), 3V (Blue)
  • Viewing Angle: 137° (Red), 140° (Green), 140° (Blue)
  • Size: 1.05mm x 1.05mm
  • Height: 0.75mm
  • Mounting Type: Surface Mount
