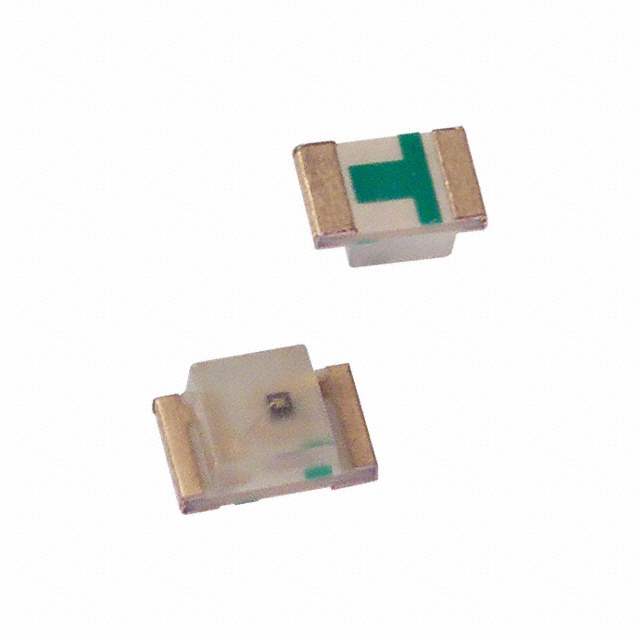

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Color Amber
Lens Color White
Lens Transparency Diffused
Millicandela Rating 65mcd
Lens Style/Size Rectangle with Flat Top, 1.30mm x 1.25mm
Forward Voltage 1.9V
Current - Test 20mA
Viewing Angle 165°
Mounting SMD (SMT)
Wavelength - Dominant 590nm
Wavelength - Peak 592nm
Case / Package Chip LED
Height (Max) 1.25mm
Win Source Part Number 119091-HSMA-S670
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HSMA-S670 CAD Model

Description

The Broadcom Limited HSMA-S670 is an amber-colored chip LED with a viewing angle of 165°. It has a forward voltage of 1.9V and a millicandela rating of 65mcd. This LED is mounted using SMD (SMT) and comes in reel packaging. The height of this LED is 1.25mm and it has a rectangular shape with a flat top that measures 1.30mm x 1.25mm. It has a diffused lens transparency and a white lens color. The wavelength-dominant and wavelength-peak are 590nm and 592nm respectively. This LED is obsolete (EOL) and has a medium popularity. This component is suitable for use in a wide range of electronic devices.
