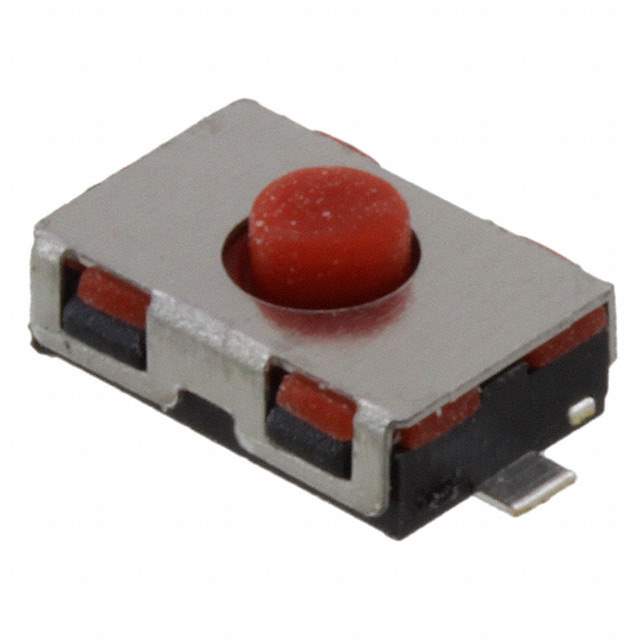

1825086-2 Real Image
Same model may have multiple batches, images only for reference.

1825086-2

Part No 1825086-2
Manufacturer TE Connectivity
Catalog Pushbutton Switches
Description SWITCH TACTILE SPST-NO 0.05A 32V / Tactile Switch SPST-NO Top Actuated Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series FSMJM
Package Tape & Reel (TR),Cut Tape (CT)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 32VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 4.00mm
Illumination Non-Illuminated
Operating Force 260gf
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Silicon Rubber
Switch Travel 0.50mm
Mechanical Life 100,000 Cycles
Base Product Number 1825086
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names -1825086-2-LSI,A117897CT,-1825086-2-SI,A117897TR
Standard Package 2,500
Win Source Part Number 1023106-1825086-2
Ultra Librarian 3D Model Ultra Librarian 1825086-2 CAD Model

Description

The TE Connectivity ALCOSWITCH Switches FSMJM series 1825086 is a SPST-NO circuit switch.

  • Package: Tape and reel
  • Termination Style: Gull-wing
  • Switch Travel: 0.50mm
  • Operating Force: 260gf
  • Mechanical Life: 100,000 cycles
  • Contact Rating: 0.05A @ 32VDC
  • Operating Temperature: -40°C to 85°C
  • Outline: 6.00mm x 4.00mm
  • Actuator Height off PCB, Vertical: 2.50mm
