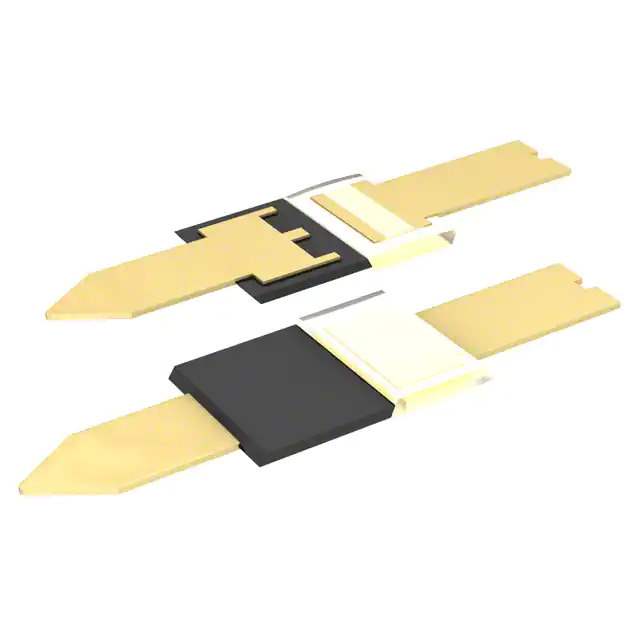

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Broadcom Limited
Series HSCH-53xx
Package Bulk
Product Status Obsolete
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 4V
Capacitance @ Vr, F 0.1pF @ 0V, 1MHz
Resistance @ If, F 20Ohm @ 5mA, 1MHz
Power Dissipation (Max) 150 mW
Temperature Range - Operating -65°C ~ 175°C
Package / Case 2-SMD, Flat Lead
Supplier Device Package 07
Base Product Number HSCH
Standard Package 20 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 873908-HSCH-5331
Ultra Librarian 3D Model Ultra Librarian HSCH-5331 CAD Model

Description

The HSCH-5331 is a Schottky diode designed for RF applications and manufactured by Broadcom Limited.

  • Capacitance: 0.1pF @ 0V and 1MHz
  • Maximum Peak Reverse Voltage: 4V
  • Maximum Power Dissipation: 150mW
  • Resistance: 20Ohm @ a forward current of 5mA and frequency of 1MHz
  • Series: HSCH-53xx
  • Package: Bulk
  • Pieces per package: 20 pieces
  • Package/Case: 2-SMD, flat lead
  • Supplier Device Package: 07
  • Operating Temperature Range: -65°C to 175°C
  • ECCN Code: EAR99
  • Status: Obsolete
