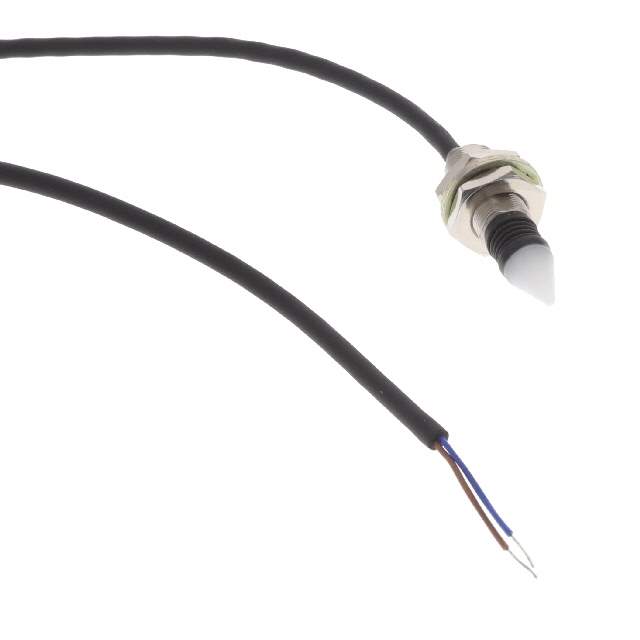

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Current Rating 30 mA
Electrical Life 5 Mcycles
Maximum Operating Temperature 70 °C
Mechanical Life 10 Mcycles
Min Operating Temperature -10 °C
Mount Panel
Packaging Bulk
Pretravel 1.397 mm
Ratings Dust Tight, IP67, Waterproof
RoHS Compliant
Switch Function On-Mom
Termination Cable Leads
Throw Configuration SPST
Voltage Rating (DC) 30 V
Win Source Part Number 1049302-D5B8021
Categories Snap Action,Limit Switches
Manufacturer Omron
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian D5B8021 CAD Model

Description

The Omron D5B8021 is a dust-tight, IP67, waterproof snap action/limit switch with cable leads.

  • Ratings: dust-tight, IP67, waterproof
  • Current Rating: 30 mA
  • Voltage Rating: 30 V DC
  • Switch Function: on-mom
  • Electrical Life: 5 million cycles
  • Mechanical Life: 10 million cycles
  • Pretravel: 1.397 mm
  • RoHS Compliance: compliant
  • Operating Temperature: -10 °C to 70 °C
  • Mounting: panel mounting
  • Supply Status: shortage
