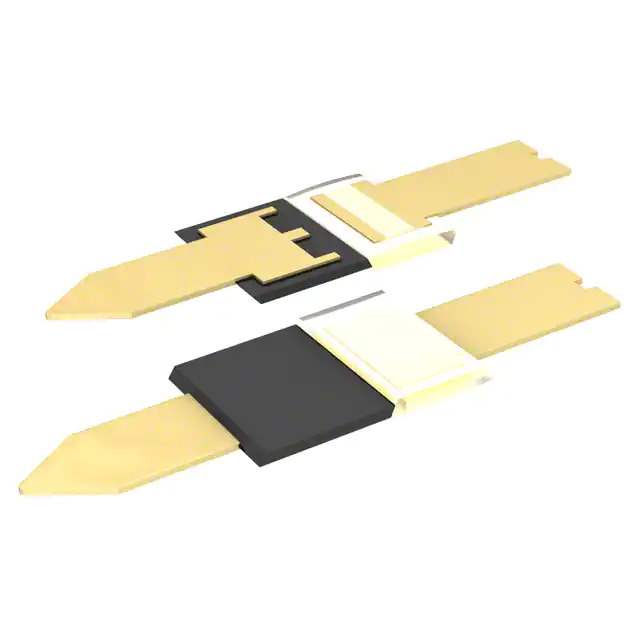

HSCH-5330 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr Broadcom Limited
Package Bulk
Product Status Obsolete
Diode Type Schottky - Single
Voltage - Peak Reverse (Max) 4V
Capacitance @ Vr, F 0.1pF @ 0V, 1MHz
Resistance @ If, F 20Ohm @ 5mA, 1MHz
Power Dissipation (Max) 1 W
Temperature Range - Operating -65°C ~ 175°C (TJ)
Package / Case 2-SMD, Beam Lead
Standard Package 10 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0060
Win Source Part Number 846748-HSCH-5330
Ultra Librarian 3D Model Ultra Librarian HSCH-5330 CAD Model

Description

The 846748-HSCH-5330 is a Schottky diode designed for RF applications. Broadcom Limited manufactures it.

  • Peak Reverse Voltage: 4V
  • Power Dissipation: 1W
  • Capacitance: 0.1pF @ 0V and 1MHz
  • Package: 2-SMD, beam lead
  • Temperature Range: -65°C to 175°C
  • Product Status: Obsolete
  • MSL: 1
  • REACH: Unaffected
