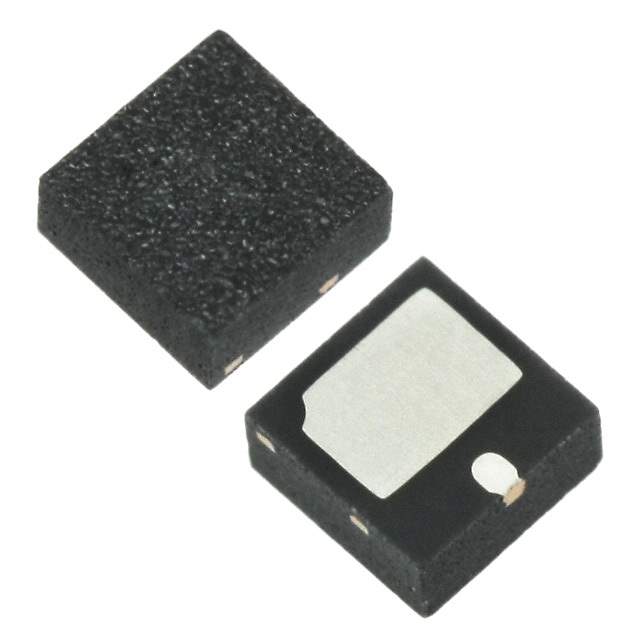

SMP1371-087LF Real Image
Same model may have multiple batches, images only for reference.

SMP1371-087LF

Part No SMP1371-087LF
Manufacturer Skyworks Solutions Inc.
Catalog RF Diodes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - RF
Mfr Skyworks Solutions Inc.
Package Tape & Reel
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 35V
Current - Max 200 mA
Capacitance @ Vr, F 1.2pF @ 20V, 1MHz
Resistance @ If, F 500mOhm @ 10mA, 100MHz
Power Dissipation (Max) 2 W
Temperature Range - Operating -55°C ~ 175°C (TJ)
Package / Case 2-VSFN Exposed Pad
Supplier Device Package 2-QFN (2x2)
Base Product Number SMP1371
Other Names 863-1169-1,863-1169-6,SMP1371087LF,863-1169-2
Standard Package 3,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1281097-SMP1371-087LF
Ultra Librarian 3D Model Ultra Librarian SMP1371-087LF CAD Model

Description

The SMP1371-087LF is a PIN-Single diode type electronic component with a peak reverse voltage of 35V and a maximum current of 200mA.

  • Capacitance: 1.2pF @ 20V and 1MHz
  • Power Dissipation: 2W
  • Resistance: 500mOhm @ 10mA and 100MHz
  • Package/Case: 2-VSFN Exposed Pad
  • Supplier Device Package: 2-QFN (2x2)
  • Operating Temperature Range: -55°C to 175°C (TJ)
  • Ideal for Use in: Discrete Semiconductor Products and Diodes-RF
