Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging AMMO PACKAGE
Status Obsolete(EOL)
Diode Type Standard - Single
Voltage - Peak Reverse (Max) 35V
Current - Max 100mA
Capacitance @ Vr, F 1.2pF @ 3V, 100MHz
Resistance @ If, F 900 mOhm @ 10mA, 200MHz
Temperature Range - Operating 125°C (TJ)

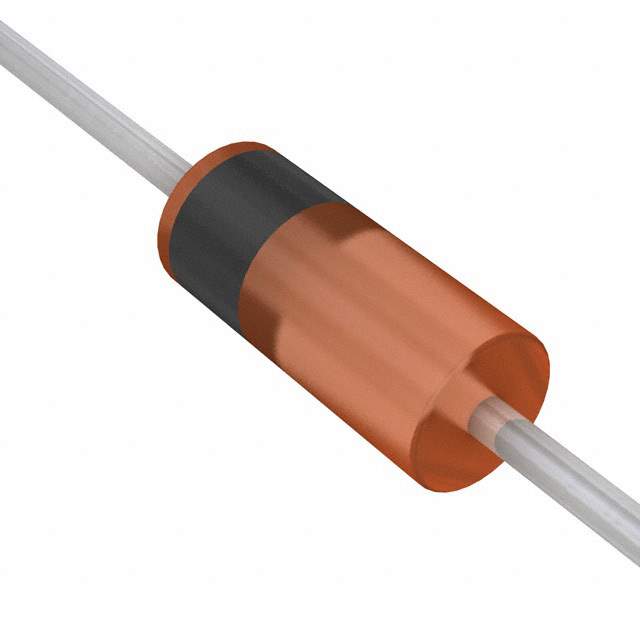

Case / Package DO-35
Win Source Part Number 130121-BA283-TAP
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BA283-TAP CAD Model

Description

Product Description

The BA283-TAP is a highly reliable attenuator that offers efficient signal management and control in electronic applications. Designed for precision and stability, it is an essential component in communication systems and broadcast equipment.

Features and Benefits

  • Precision attenuation for accurate signal processing
  • Easy integration into existing systems with minimal footprint
  • Stable performance across a wide range of frequencies
  • Enhanced durability for long-term use

Applications

  • Broadcast equipment
  • Communication devices
  • Audio processing systems
  • Testing and measurement equipment

The BA283-TAP ensures optimal signal quality and control, making it indispensable in applications where precise attenuation is necessary.
