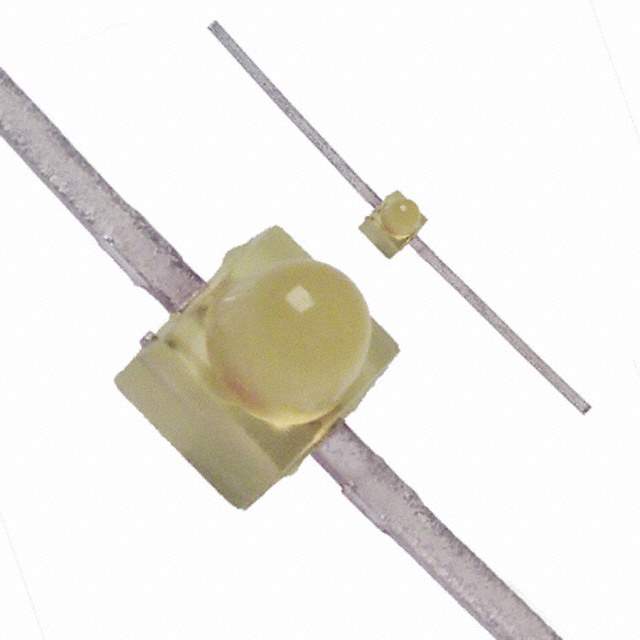

HLMP-7019 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Color Yellow
Configuration Standard
Lens Color Yellow
Lens Transparency Diffused
Millicandela Rating 0.6mcd
Lens Style Round with Domed Top
Lens Size 1.91mm Dia
Voltage - Forward (Vf) 2V
Current - Test 2mA
Viewing Angle 90°
Mounting Style Through Hole, Axial
Wavelength - Dominant 585nm
Wavelength - Peak 583nm
Manufacturer Package Axial, Flat Leads
Supplier Device Package Axial
Parts Dimension 2.08mm L x 2.21mm W
Height (Maximum) 2.92mm
Family Part Number HLMP-7019
Manufacturer Pack Quantity 1,000
MSL Level 2A (4 Weeks)
Win Source Part Number 1180877-HLMP-7019
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian HLMP-7019 CAD Model

Description

The HLMP-7019 is a yellow-colored LED manufactured by Broadcom Limited.

  • Product Name: HLMP-7019
  • Manufacturer: Broadcom Limited
  • Color: yellow-colored
  • Millicandela Rating: 0.6mcd
  • Viewing Angle: 90°
  • Mounting Style: through-hole, axial mounting style
  • Supplier Device Package: axial
  • Lens Style: round with a domed top
  • Lens Size: 1.91mm dia
  • Wavelength-Dominant: 585nm
  • Wavelength-Peak: 583nm
  • Current Test: 2mA
  • Voltage Forward: 2V
  • Popularity Rating: medium
