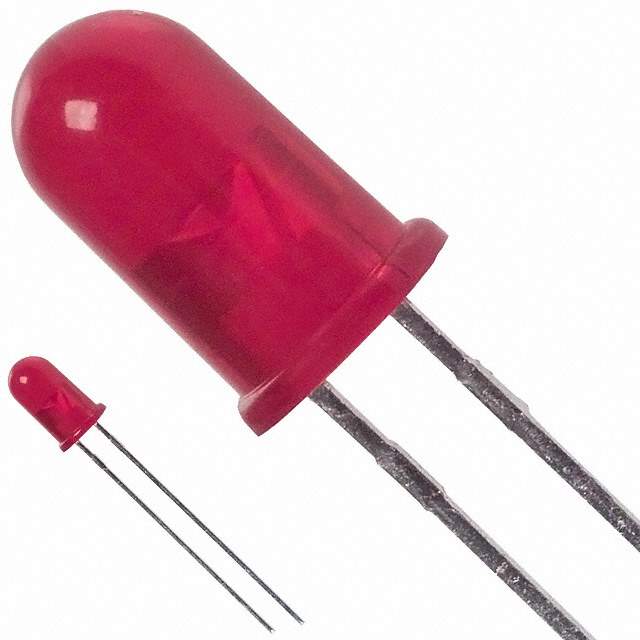

HLMP-4700 Real Image
Same model may have multiple batches, images only for reference.

HLMP-4700

Part No HLMP-4700
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFF 5MM ROUND T/H
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Color Red
Lens Color Red
Lens Transparency Diffused
Millicandela Rating 2.3mcd
Lens Style/Size Round with Domed Top, 5mm (T-1 3/4), 4.83mm
Forward Voltage 1.7V
Current - Test 2mA
Viewing Angle 50°
Mounting Through Hole
Wavelength - Dominant 626nm
Wavelength - Peak 635nm
Case / Package T-1 3/4
Height (Max) 9.19mm
Win Source Part Number 1043546-HLMP-4700
Popularity Medium
Supply and Demand Status Balance
Application Field Used in LED Lighting, Portable Devices, Industrial, Consumer Electronics
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian HLMP-4700 CAD Model

Description

The Broadcom Limited HLMP-4700 LED is a red diffused lens with a round domed top.

  • Lens Size: 5mm (T-1 3/4)
  • Viewing Angle: 50 degrees
  • Forward Voltage: 1.7V
  • Millicandela Rating: 2.3mcd
  • Applications: LED lighting, portable devices, industrial and consumer electronics
  • Package: Bulk
  • Quantity: 2k pcs
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Part Status: Active
