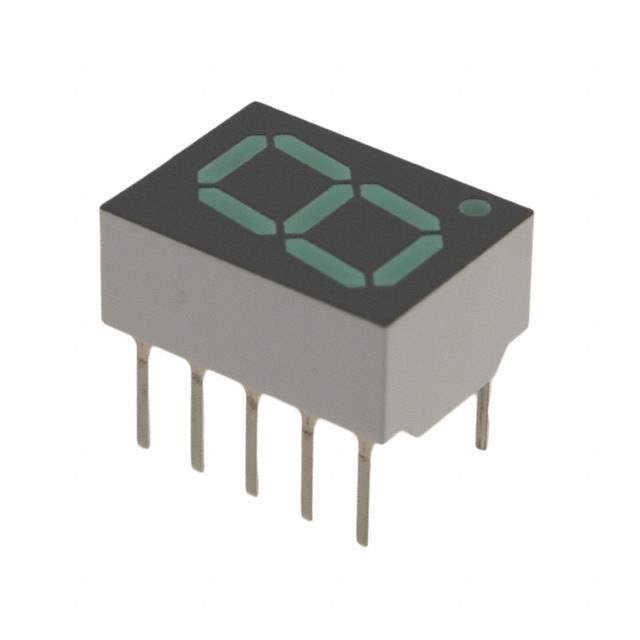

HDSP-F503 Real Image
Same model may have multiple batches, images only for reference.

HDSP-F503

Part No HDSP-F503
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description 10 mm (0.40 inch) Seven Segment Displays Single and dual digits | LED 7-SEG 10MM CC GREEN RHD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube
Number of Characters 1
Parts Dimension 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm)
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Green
Voltage - Forward (Vf) 2.1V
Current - Test 10mA
Millicandela Rating 3.5mcd
Wavelength - Peak 566nm
Power Dissipation (Maximum) 105mW
Manufacturer Package 10-DIP
Manufacturer Pack Quantity 200
MSL Level 1 (Unlimited)
Win Source Part Number 1179752-HDSP-F503
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-F503 CAD Model

Description

The HDSP-F503 is a green 7-segment display from Broadcom Limited.

  • Millicandela Rating: 3.5mcd
  • Digit/Alpha Size: 0.40 inches or 10.16mm
  • Display: 7-segment
  • Common Cathode/Anode: common cathode
  • Package: 10-DIP
  • Category: optoelectronics
  • Popularity: medium
  • Manufacturer Pack Quantity: 200
  • MSL Level: 1 (unlimited)
  • Power Dissipation (Maximum): 105mW
