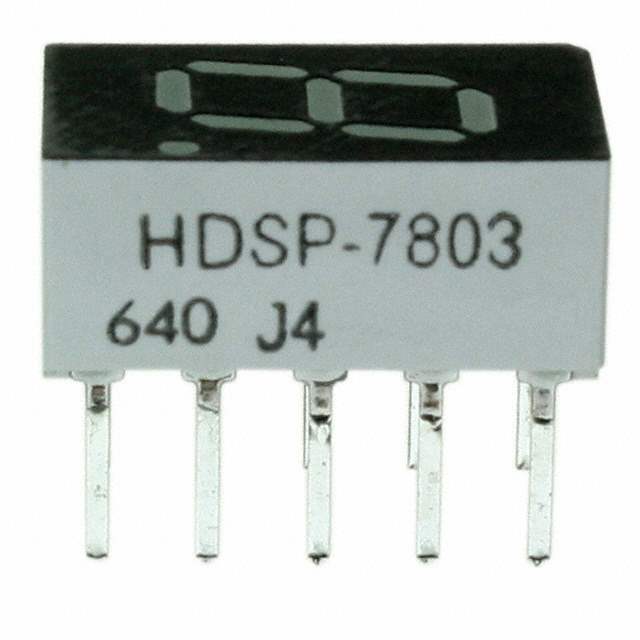

HDSP-7803 Real Image
Same model may have multiple batches, images only for reference.

HDSP-7803

Part No HDSP-7803
Manufacturer Broadcom Limited
Catalog Display Modules - LED Character and Numeric
Description LED 7-SEG 7.6MM CC GREEN RHD
Datasheet
HDSP-7803 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Characters 1
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Cathode
Color Green
Forward Voltage 2.1V
Current - Test 10mA
Millicandela Rating 6.8mcd
Wavelength - Peak 566nm
Power Dissipation (Max) 105mW
Dimension 10-DIP (0.200", 5.08mm)
Win Source Part Number 139035-HDSP-7803
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HDSP-7803 CAD Model

Description

The electronic component with Id 151711 is manufactured by Broadcom Limited. The win source part number for this component is 139035-HDSP-7803. It is a green 7-segment display with a forward voltage of 2.1V and a millicandela rating of 6.8mcd. The current test is 10mA, and the peak wavelength is 566nm. The power dissipation is 105mW, and it has a common cathode. The dimension of this component is 10-DIP (0.200", 5.08mm). The supply and demand status of this component is limited.
