Same model may have multiple batches, images only for reference.

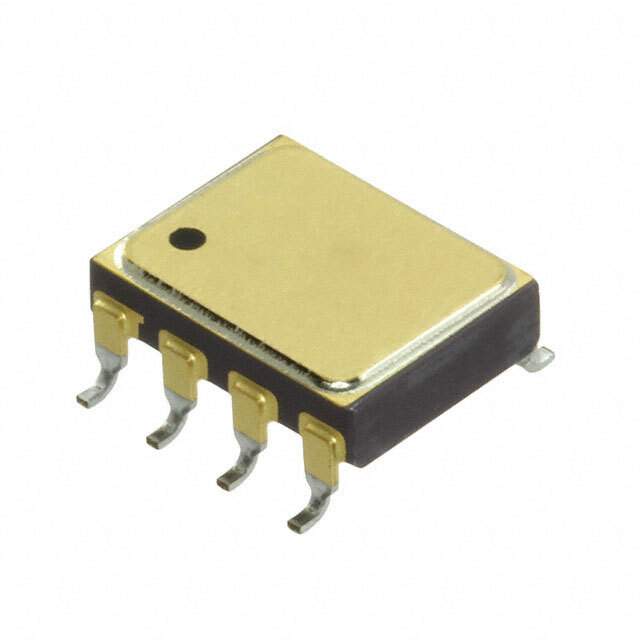

HCPL-5631#300 Real Image
Same model may have multiple batches, images only for reference.

HCPL-5631#300

Part No HCPL-5631#300
Manufacturer Broadcom Limited
Catalog Optoisolators - Logic Output
Description OPTOISO 1.5KV OPEN COLL 8DIP GW
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Broadcom Limited
Packaging Bulk
Number of Channels 2
Inputs - Side 1/Side 2 2/0
Voltage - Isolation 1500VDC
Common Mode Transient Immunity (Min) 1kV/μs
Input Type DC
Output Type Open Collector, Schottky Clamped
Current - Output / Channel 25mA
Data Rate 10MBd
Propagation Delay tpLH / tpHL (Maximum) 100ns, 100ns
Rise / Fall Time (Typ) 35ns, 35ns
Voltage - Forward (Vf) (Typ) 1.5V
Current - DC Forward (If) (Maximum) 20mA
Supply Voltage (V) 4.5V ~ 5.5V
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 8-CSMD, Gull Wing
Supplier Device Package 8-DIP Gull Wing
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812025-HCPL-5631#300
Ultra Librarian 3D Model Ultra Librarian HCPL-5631#300 CAD Model

Description

The HCPL-5631#300 from Broadcom Limited is a 2-channel DC-input open collector, schottky clamped output optocoupler.

  • Package: 8-DIP gull wing
  • Data Rate: 10MBd
  • Voltage Isolation: 1500VDC
  • Rise/Fall Time: 35ns/35ns
  • Current Output/Channel: 25mA
  • Input Type: DC
  • Inputs-Side 1/Side 2: 2/0
  • Common Mode Transient Immunity: 1kV/μs
  • Propagation Delay tpLH/tpHL: 100ns/100ns
  • Temperature Range: -55°C to 125°C
  • Packaging: Bulk
  • Product Popularity: Low
  • Supply and Demand Status: Limited
