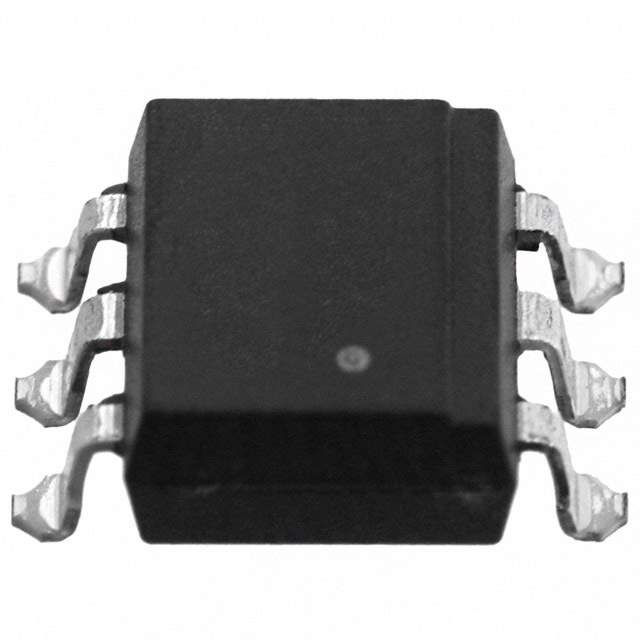

CNY17-2-360E Real Image
Same model may have multiple batches, images only for reference.

CNY17-2-360E

Part No CNY17-2-360E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV TRANS W/BASE 6SMD  /  Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Transistor, Photovoltaic Output
Mfr Broadcom Limited
Package Tube
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 63% @ 10mA
Current Transfer Ratio (Max) 125% @ 10mA
Rise / Fall Time (Typ) 5µs, 5µs
Input Type DC
Output Type Transistor with Base
Voltage - Output (Max) 70V
Current - Output / Channel 150mA
Voltage - Forward (Vf) (Typ) 1.4V
Current - DC Forward (If) (Max) 60 mA
Vce Saturation (Max) 300mV
Temperature Range - Operating -55°C ~ 100°C
Mounting SMD (SMT)
Package / Case 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Base Product Number CNY17
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Standard Package 65
Win Source Part Number 1137732-CNY17-2-360E
Ultra Librarian 3D Model Ultra Librarian CNY17-2-360E CAD Model

Description

The CNY17-2-360E is an optoisolator transistor with base output from Broadcom Limited.

  • Input Type: DC
  • Forward Current (If) (Max): 60mA
  • Voltage - Forward (Vf) (Typ): 1.4V
  • Vce Saturation (Max): 300mV
  • Rise / Fall Time (Typ): 5μs
  • Voltage - Output (Max): 70V
  • Current Transfer Ratio (Min): 63% @ 10mA
  • Current Transfer Ratio (Max): 125% @ 10mA
  • Number of Channels: 1
  • Voltage - Isolation: 5000Vrms
  • Package / Case: 6-SMD, Gull Wing
  • Operating Temperature: -55°C ~ 100°C
