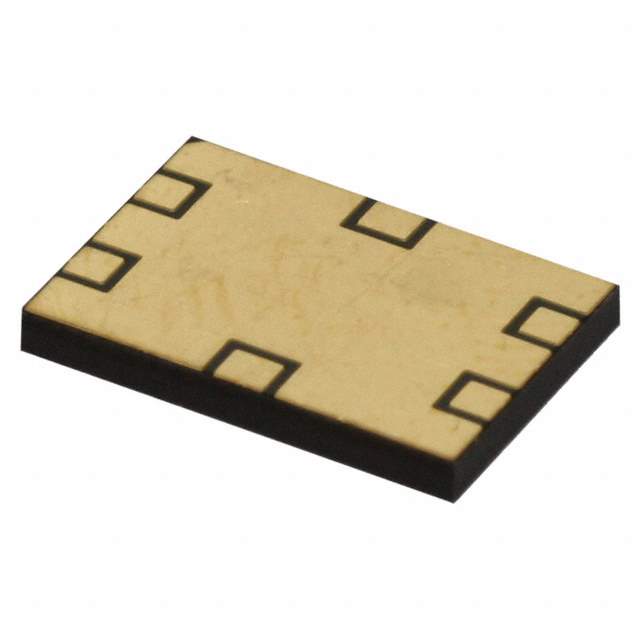

ALM-32320-BLKG

Part No ALM-32320-BLKG
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP 2W PA 3.5GHZ 20MCOB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Bulk
Status Active
Frequency 3.3GHz to 3.9GHz
P1dB 34.5dBm (2.818W)
Gain 12.6dB
Noise Figure 2.5dB
RF Type WiMax
Supply Voltage - Operating 5V
Operating Supply Current 810mA
Test Frequency 3.5GHz
Case / Package 20-MCOB (7x10)
Win Source Part Number 078020-ALM-32320-BLKG
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian ALM-32320-BLKG CAD Model

Description

Product Overview

The ALM-32320-BLKG is engineered to deliver top-notch performance in signal amplification, perfectly suited for industrial and commercial communication systems.

Key Features and Benefits

  • High Output Power: Capable of driving large loads, suitable for demanding applications.
  • Durable Build: Constructed with high-quality materials for long-lasting performance.
  • Energy Efficient: Consumes less power while providing optimal output, reducing operational costs.

Applications

  • Base Stations
  • Broadcasting Equipment
  • Microwave Communication Links
  • Data Transmission Devices

Additional Details

An excellent choice for systems requiring robust and reliable signal amplification, the ALM-32320-BLKG offers peace of mind with its exceptional build quality and energy efficiency.
