Same model may have multiple batches, images only for reference.

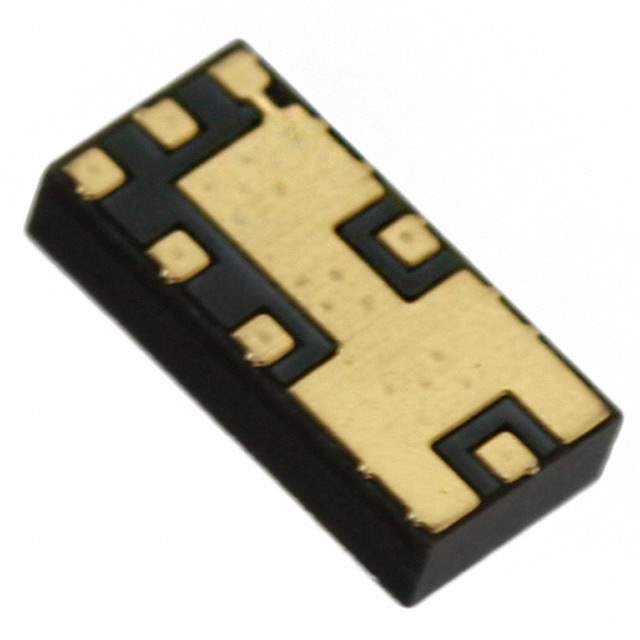

ALM-1412-TR1G Real Image
Same model may have multiple batches, images only for reference.

ALM-1412-TR1G

Part No ALM-1412-TR1G
Manufacturer Broadcom Limited
Catalog RF Amplifiers
Description IC AMP GPS LNA 12-MCOB
Datasheet
ALM-1412-TR1G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Obsolete(EOL)
Frequency 1.575GHz
P1dB 4.5dBm (2.8mW)
Gain 12.2dB
Noise Figure 0.82dB
RF Type GPS
Supply Voltage - Operating 1 V to 3.6 V
Operating Supply Current 9.8mA
Test Frequency 1.575GHz
Case / Package 12-MCOB (3.3x2.1)
Win Source Part Number 096749-ALM-1412-TR1G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ALM-1412-TR1G CAD Model

Description

ALM-1412-TR1G Advanced Low Noise Amplifier

The ALM-1412-TR1G provides industry-leading low noise amplification, ensuring the integrity and clarity of signals in various demanding environments.

Applications

  • Defense communication systems
  • Aerospace applications
  • High-frequency data communications

Features and Benefits

  • Ultra-low noise figure for optimal clarity
  • Compact size and lightweight for easy integration
  • High durability for extended life span

This product is formulated to meet the exacting standards of advanced communication systems, where every detail counts.
