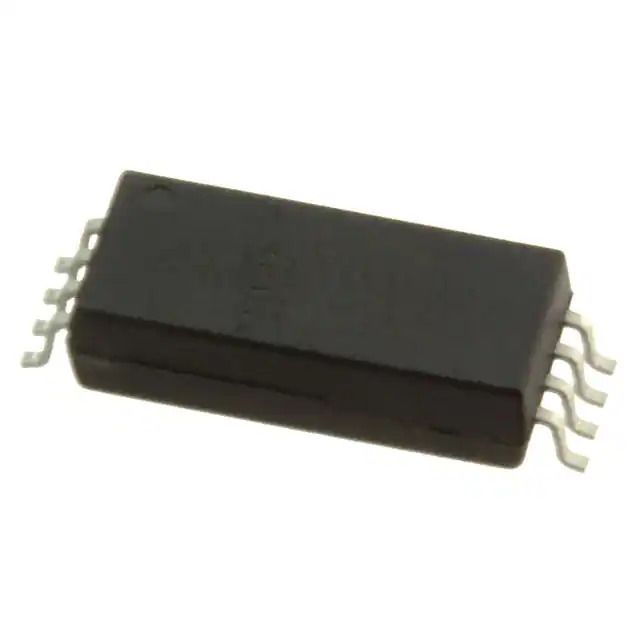

ACNT-H511-000E

Name: ACNT-H511-000E
Brand: Broadcom Limited
SKU: 1354527
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACNT-H511-000E
Manufacturer	Broadcom Limited
Catalog	Optoisolators - Transistor, Photovoltaic Output
Description	15MM OPTOCOUPLER (1MBD) / Optoisolator Transistor Output 7500Vrms 1 Channel 8-SO Stretched
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr	Broadcom Limited
Series	-
Package	Bulk
Product Status	Active
Number of Channels	1
Voltage - Isolation	7500Vrms
Current Transfer Ratio (Min)	31% @ 12mA
Current Transfer Ratio (Max)	80% @ 12mA
Turn On / Turn Off Time (Typ)	150ns, 400ns
Rise / Fall Time (Typ)	-
Input Type	DC
Output Type	Transistor
Voltage - Output (Max)	24V
Current - Output / Channel	12mA
Voltage - Forward (Vf) (Typ)	1.45V
Current - DC Forward (If) (Max)	20 mA
Vce Saturation (Max)	-
Temperature Range - Operating	-40°C ~ 105°C
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.535", 13.60mm Width)
Supplier Device Package	8-SO Stretched
Base Product Number	ACNT-H511
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.49.8000
Win Source Part Number	1354527-ACNT-H511-000E
Ultra Librarian 3D Model	Ultra Librarian ACNT-H511-000E CAD Model

Description

The Broadcom Limited ACNT-H511-000E is an optoisolator with a transistor photovoltaic output.

Temperature Range: -40°C to 105°C
Voltage Output: Up to 24V
Forward Voltage: 1.45V
Current Transfer Ratio: 31% to 80% @ 12mA
Turn On Time: 150ns
Turn Off Time: 400ns
Mounting Type: Surface Mount
Package: 8-SOIC
Voltage Isolation: 7500Vrms
