Same model may have multiple batches, images only for reference.

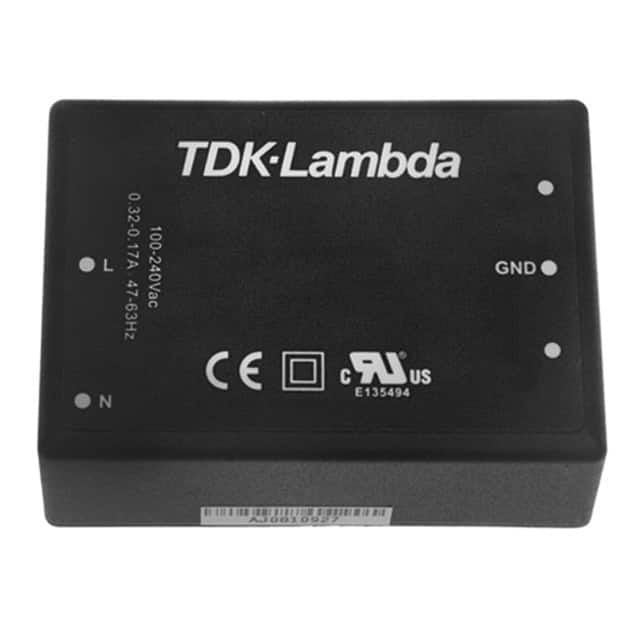

KMD15-1212 TDK-Lambda Americas Inc.
Same model may have multiple batches, images only for reference.

KMD15-1212

Part No KMD15-1212
Manufacturer TDK-Lambda Americas Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER +/-12V 15W  /  Enclosed AC DC Converters 2 Output 12V -12V 625mA, 625mA 90 ~ 264 VAC, 100 ~ 375 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>AC DC Converters
Mfr TDK-Lambda Americas Inc
Series KM (15W)
Package Bulk
Product Status Not For New Designs
Type Enclosed
Number of Outputs 2
Voltage - Input 90 ~ 264 VAC, 100 ~ 375 VDC
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 625mA, 625mA
Power (Watts) 15 W
Applications Medical
Features Universal Input
Temperature Range - Operating -25°C ~ 70°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 9-DIP Module, 5 Leads
Dimension 2.52" L x 1.80" W x 0.93" H (64.0mm x 45.6mm x 23.5mm)
Approval Agency CE, EN, IEC, UL
Standard Number 60601-1; 60950-1; 62368-1
Line Regulation 0.5%
Load Regulation 1%
Weight 0.265 lb (120.2 g)
Base Product Number KMD15
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
Other Names 285-1759,KMD151212
Standard Package 1
Win Source Part Number 1078341-KMD15-1212
Ultra Librarian 3D Model Ultra Librarian KMD15-1212 CAD Model

Description

The KMD15-1212 is a 15 W power supply board mount AC/DC converter from TDK-Lambda Americas Inc.

  • Input Voltage: 90 ~ 264 VAC, 100 ~ 375 VDC
  • Output Channels: 2
  • Package: 9-DIP module, 5 leads
  • Mounting: Through hole technology
  • Applications: Medical applications
  • Efficiency: 80%
  • Line Regulation: 0.5%
  • Temperature Range: -25°C ~ 70°C (With Derating)
  • Status: Not for new designs
