Same model may have multiple batches, images only for reference.

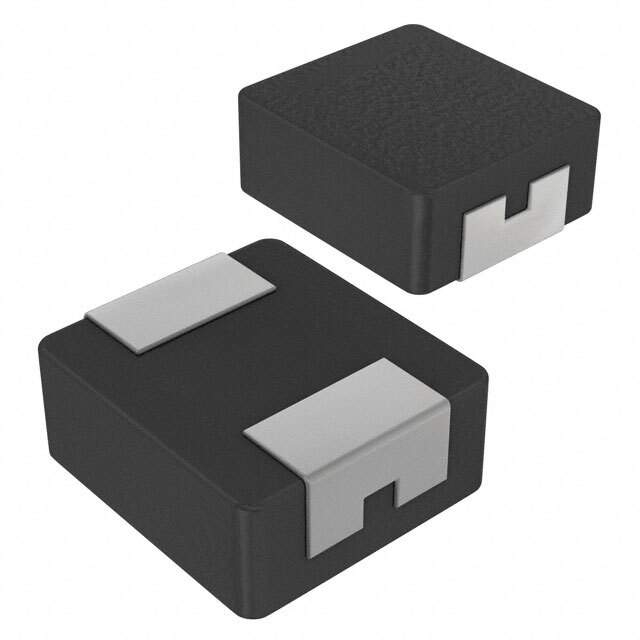

SRP4020TA-4R7M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-4R7M

Part No SRP4020TA-4R7M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 4.7UH 2.6A 105MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2.6 A 105mOhm Max 2-SMD
Datasheet
SRP4020TA-4R7M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 2.6 A
Current - Saturation (Isat) 3.5A
Shielding Shielded
DC Resistance (DCR) 105mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 27MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020TA-4R7MTR,SRP4020TA-4R7MDKR,SRP4020TA-4R7MCT
Standard Package 3,000
Win Source Part Number 967057-SRP4020TA-4R7M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-4R7M CAD Model

Description

The Bourns Inc. SRP4020TA-4R7M is a fixed inductor manufactured by Bourns Inc.

  • Product Name: SRP4020TA-4R7M
  • Manufacturer: Bourns Inc.
  • Type: Fixed Inductor
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • Height: 0.079" (2.00mm)
  • Dimension: 0.175" L x 0.160" W (4.45mm x 4.06mm)
  • Current Rating: 2.6 A
  • Inductance Frequency Test: 100 kHz
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8504.50.4000
