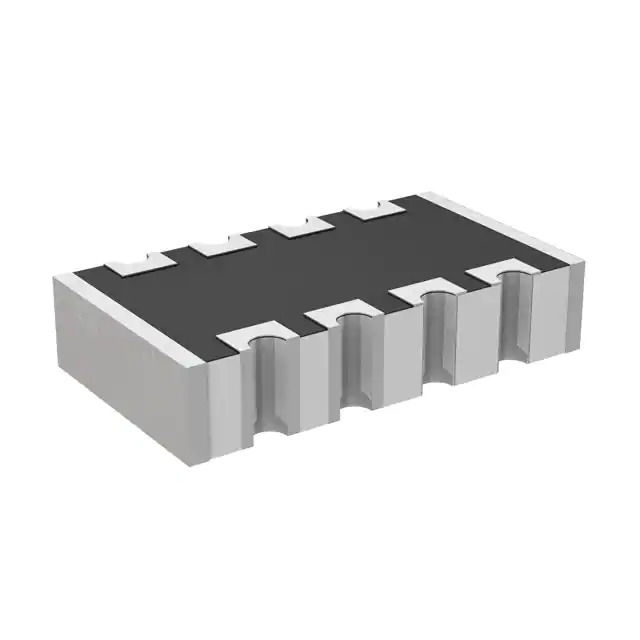

Same model may have multiple batches, images only for reference.
TC164-JR-07470RL Yageo
Same model may have multiple batches, images only for reference.

TC164-JR-07470RL

Part No TC164-JR-07470RL
Manufacturer Yageo
Catalog Resistor Networks, Arrays
Description RES ARRAY 4 RES 470 OHM 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Resistor Networks, Arrays
Mfr YAGEO
Series TC164
Package Tape & Reel
Product Status Active
Circuit Type Isolated
Resistance (Ohms) 470
Tolerance ±5%
Number of Resistors 4
Resistor Matching Ratio -
Resistor-Ratio-Drift -
Number of Pins 8
Power Per Element 62.5mW
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Applications Automotive AEC-Q200, DDRAM, SDRAM
Mounting Type Surface Mount
Package / Case 1206 (3216 Metric), Concave, Long Side Terminals
Supplier Device Package -
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.028" (0.70mm)
Base Product Number TC164-JR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0020
Win Source Part Number 1374093-TC164-JR-07470RL
Ultra Librarian 3D Model Ultra Librarian TC164-JR-07470RL CAD Model

Description

The TC164-JR-07470RL is a resistor network array manufactured by YAGEO.

  • Series: TC164
  • Mounting Type: Surface Mount
  • Package/Case Size: 1206 (3216 Metric), Concave, Long Side Terminals
  • Resistance: 470 Ohms
  • Number of Resistors: 4
  • Power per Element: 62.5mW
  • Tolerance: ±5%
  • Temperature Coefficient: ±200ppm/°C
  • Temperature Range: -55°C to 155°C
  • Applications: Automotive AEC-Q200, DDRAM, SDRAM
  • Packaging: Tape & Reel
  • REACH: Unaffected
  • ECCN: EAR99
