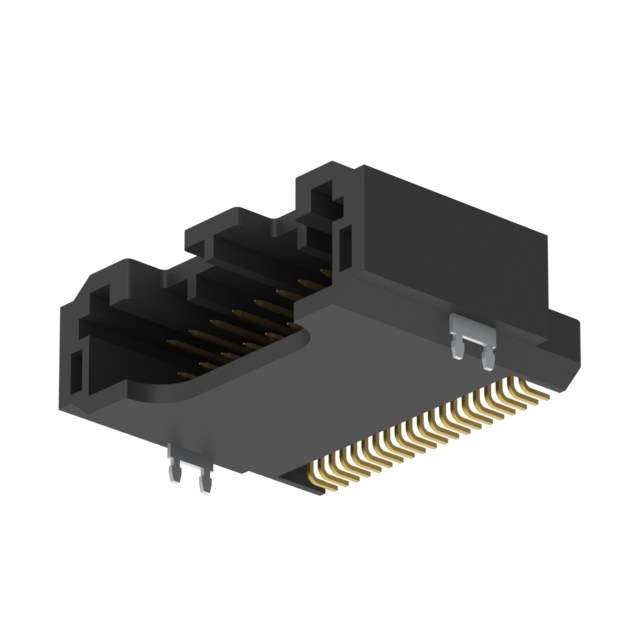

IMSA-13065B-2-20Y900

Name: IMSA-13065B-2-20Y900
Brand: IRISO
SKU: 1351909
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IMSA-13065B-2-20Y900
Manufacturer	IRISO
Catalog	Rectangular Connectors
Description	HEADER SMT RA 20POS KEY-A / Connector Header Surface Mount, Right Angle 20 position 0.079" (2.00mm)
Datasheet	IMSA-13065B-2-20Y900 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	IRISO USA Inc.
Series	13065B
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.098" (2.50mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Locking Ramp
Insulation Height	0.366" (9.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Polyphenylene Sulfide (PPS)
Features	Solder Retention
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	IMSA-13065B
Standard Package	300
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1351909-IMSA-13065B-2-20Y900
Ultra Librarian 3D Model	Ultra Librarian IMSA-13065B-2-20Y900 CAD Model

Alternative Products

Description

The IRISO USA Inc. IMSA-13065B is a surface mount male pin header with a shrouded 4-wall design.

Gender: Male
Positions: 20
Rows: 2
Mounting Type: Surface Mount
Termination: Solder
Fastening Type: Locking Ramp
Package: Tape and Reel
Insulation Material: Polyphenylene Sulfide (PPS)
Pitch-Mating: 0.079” (2.00mm)
Contact Finish-Mating: Tin with a thickness of 39.4μin (1.00μm)
Insulation Color: Black
Mounting Type: Surface Mount, Right-Angle
Temperature Range: -40°C ~ 105°C
