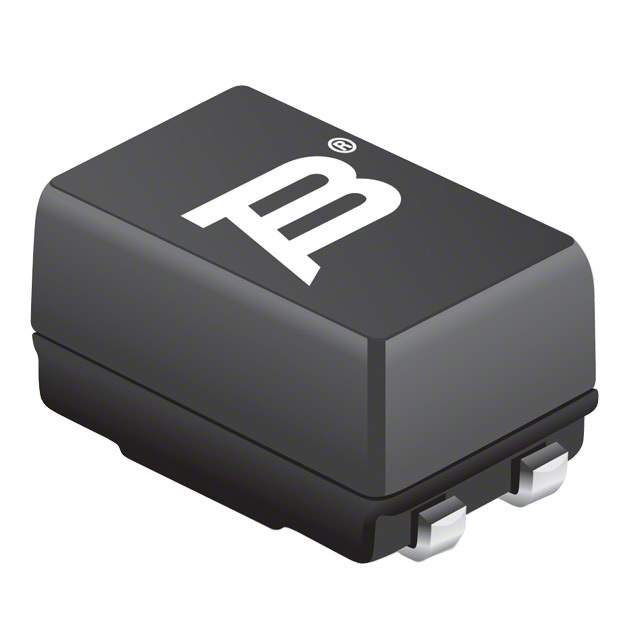

SRF0905-251Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-251Y

Part No SRF0905-251Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description Inductance range: 10 to 6500 μH
Datasheet
SRF0905-251Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel - TR
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohm @ 3MHz
Inductance @ Frequency 250μH @ 100kHz
Current Rating (Maximum) 1.2A
DC Resistance (DCR) (Maximum) 130 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Size 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 1258743-SRF0905-251Y
Manufacturer Homepage www.bourns.com
Popularity Medium
Supply and Demand Status Limited
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian SRF0905-251Y CAD Model

Description

The SRF0905-251Y from Bourns Inc. is a signal line filter with a horizontal, 4 PC pad package and a size of 0.362" L x 0.236" W (9.20mm x 6.00mm).

  • Operating Temperature Range: -40°C to 105°C
  • Voltage Rating: 80V DC
  • Configuration: 2-line
  • Impedance: 600 Ohm @ 3MHz
  • Inductance: 250μH @ 100kHz
  • Win Source Part Number: 1258743-SRF0905-251Y
