Same model may have multiple batches, images only for reference.

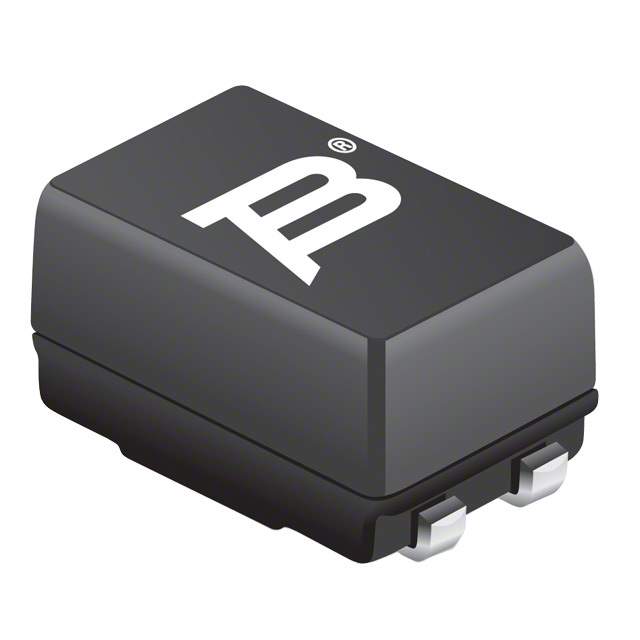

SRF0905-250Y Real Image
Same model may have multiple batches, images only for reference.

SRF0905-250Y

Part No SRF0905-250Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 25UH 1A 2LN 600 OHM SMD / Common Mode Chokes Dual 25uH 600Ohm 1kHz 1A 0.16Ohm DCR SMD T/R
Datasheet
SRF0905-250Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Bourns Inc.
Series SRF0905
Packaging Reel package
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 600 Ohm @ 20MHz
Inductance @ Frequency 25μH @ 1kHz
Current Rating (Maximum) 1A
DC Resistance (DCR) (Maximum) 160 mOhm
Voltage Rating - DC 80V
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Dimension 0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Maximum) 0.209" (5.30mm)
Package Horizontal, 4 PC Pad
Win Source Part Number 795394-SRF0905-250Y
Popularity Medium
Supply and Demand Status Balance
Family Name SRF0905
Introduction Date May 20, 2009
ECCN EAR99
Country of Origin China, Taiwan
Halogen Free Compliant
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian SRF0905-250Y CAD Model

Description

The Bourns Inc. SRF0905-250Y is a signal line filter that belongs to the SRF0905 series from Bourns Inc.

  • Package: reel
  • Pad: horizontal, 4 PC
  • Voltage Rating: 80V
  • Impedance: 600 Ohms @ 20MHz
  • Inductance: 25μH @ 1kHz
  • Current Rating (Maximum): 1A
  • Supply and Demand Status: balance
