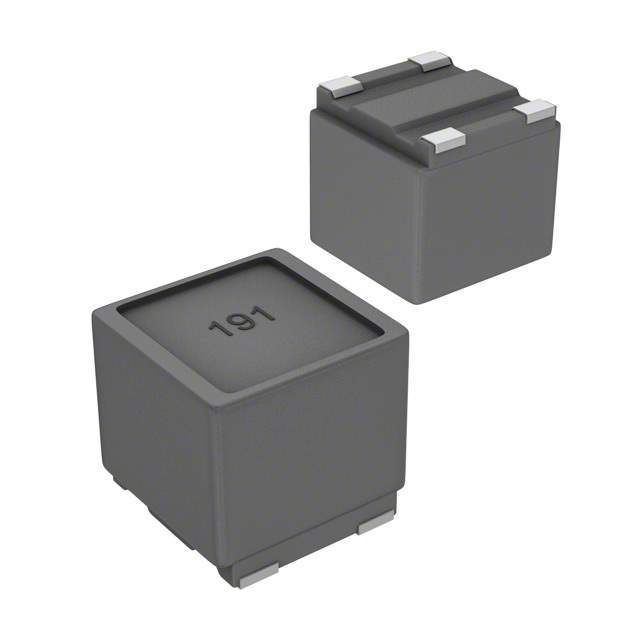

SRF0504-302Y Real Image
Same model may have multiple batches, images only for reference.

SRF0504-302Y

Part No SRF0504-302Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 6UH 500MA 2LN 3KOHM SMD
Datasheet
SRF0504-302Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 37 Weeks
Features 6 2 Line Common Mode Choke Surface Mount 3 500mA DCR 200mOhm
Manufacturer Bourns Inc.
Series SRF0504
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
Family Name SRF0504
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number SRF0504-302YDKR, -SRF0504-302YTR, SRF0504-302YCT, SRF0504302Y, -SRF0504-302YCT, SRF0504-302Y-ND, SRF0504-302YTR, -SRF0504-302Y-ND, -SRF0504-302Y
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897349-SRF0504-302Y
Ultra Librarian 3D Model Ultra Librarian SRF0504-302Y CAD Model

Description

The SRF0504-302Y is a 6 2 line common mode choke surface mount from Bourns Inc. It has a DCR of 200mOhm and a current rating of 3.5A.

  • Type: Common Mode Choke
  • Lines: 2
  • Mounting: Surface Mount
  • Manufacturer: Bourns Inc.
  • DCR: 200mOhm
  • Current Rating: 3.5A
  • Core Material: Ferrite
  • Temperature Range: -40°C ~ 125°C
  • Package: Horizontal, 4 PC Pad
  • AEC-Q200: Rated
  • Series: SRF0504
  • Quantity per Package: 1000
  • Application: Filters
