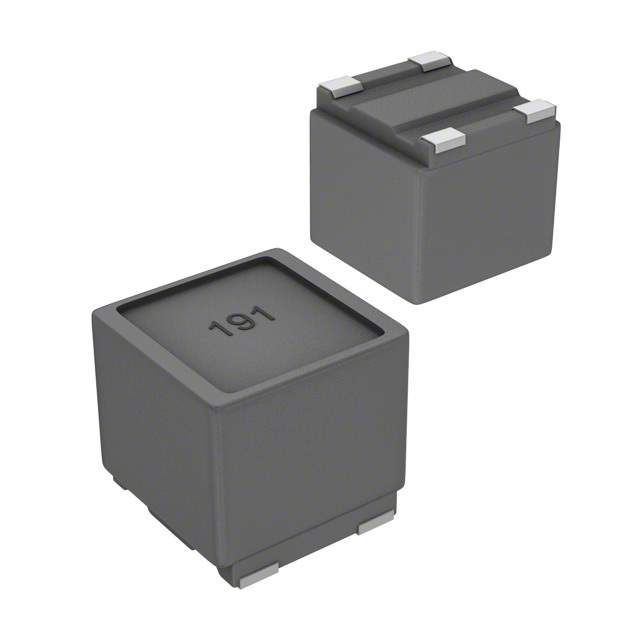

SRF0504-152Y Real Image
Same model may have multiple batches, images only for reference.

SRF0504-152Y

Part No SRF0504-152Y
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 3.6UH 1A 2LN 1.5KOHM SMD
Datasheet
SRF0504-152Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 37 Weeks
Features 2 Line Common Mode Choke Surface Mount 1A DCR 100mOhm
Manufacturer Bourns Inc.
Series SRF0504
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package Horizontal, 4 PC Pad
Family Name SRF0504
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number -SRF0504-152YCT, SRF0504-152YTR, -SRF0504-152Y-ND, SRF0504-152YDKR, -SRF0504-152YTR, -SRF0504-152Y, SRF0504152Y, SRF0504-152Y-ND, SRF0504-152YCT
Quantity per package 1000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 897347-SRF0504-152Y
Ultra Librarian 3D Model Ultra Librarian SRF0504-152Y CAD Model

Description

The Bourns Inc. SRF0504-152Y is a 2 line common mode choke from the filter category. It is mounted using surface mount and has a horizontal, 4 PC pad package.

  • Type: Common Mode Choke
  • Lines: 2
  • Category: Filter
  • Mounting: Surface Mount
  • Package: Horizontal, 4 PC Pad
  • Operating Temperature: -40°C ~ 125°C
  • Current Rating: 1A
  • DCR: 100mOhm
  • Supply and Demand: Balance
  • Package Quantity: 1000
  • Production Lead Time: 37 weeks
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: Bourns Inc.
