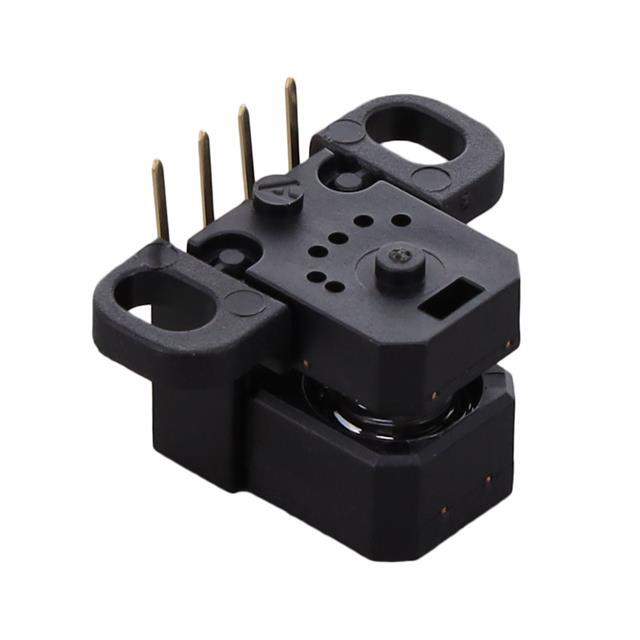

HEDS-9731#150 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9731#150

Part No HEDS-9731#150
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 360LPI STD / Optical Encoder Linear Incremental Straight Digital Through Hole PC Pin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 360 LPI
Operating Supply Voltage 3.3VDC
Actuator Type Codestrip Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Right Angle
Termination Style Terminal Pins
Win Source Part Number 775909-HEDS-9731#150
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-9731
Introduction Date January 01, 2006
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9731#150 CAD Model

Description

The HEDS-9731#150 from Broadcom Limited is an optical encoder.

  • Output Type: Quadrature (incremental)
  • Operating Supply Voltage: 3.3VDC
  • Termination Style: Terminal Pins
  • Orientation: Right Angle
  • Built-in Switch: No
  • Detent: No
  • Encoder Type: Optical
  • Lines per inch: 360
  • Mounting: Chassis
  • Series: HEDS
  • Supply and Demand Status: Limited
  • Package Quantity: 50
