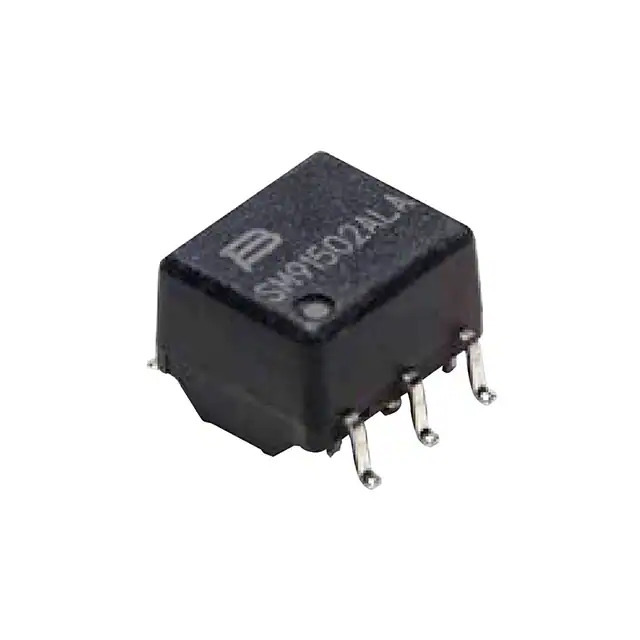

SM91502ALA-E Bourns Inc.
Same model may have multiple batches, images only for reference.

SM91502ALA-E

Part No SM91502ALA-E
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description BMS TRANSFORMER/CMC, 6PIN, SGL, / 150µH Pulse Transformer 1:1 Surface Mount
Datasheet
SM91502ALA-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel
Product Status Active
Transformer Type -
Inductance 150µH
ET (Volt-Time) -
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.265" W (7.62mm x 6.73mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating -40°C ~ 125°C
Weight -
Base Product Number SM91502
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1355162-SM91502ALA-E
Ultra Librarian 3D Model Ultra Librarian SM91502ALA-E CAD Model

Description

The SM91502ALA-E is a pulse transformer from Bourns Inc.

  • Mounting Type: Surface Mount
  • Size / Dimension: 0.300" L x 0.265" W
  • Operating Temperature: -40°C ~ 125°C
  • REACH: Unaffected
  • Moisture Sensitivity Level (MSL): Level 1 (Unlimited)
  • Packaging: Tape & Reel (TR)
  • Status: Active
