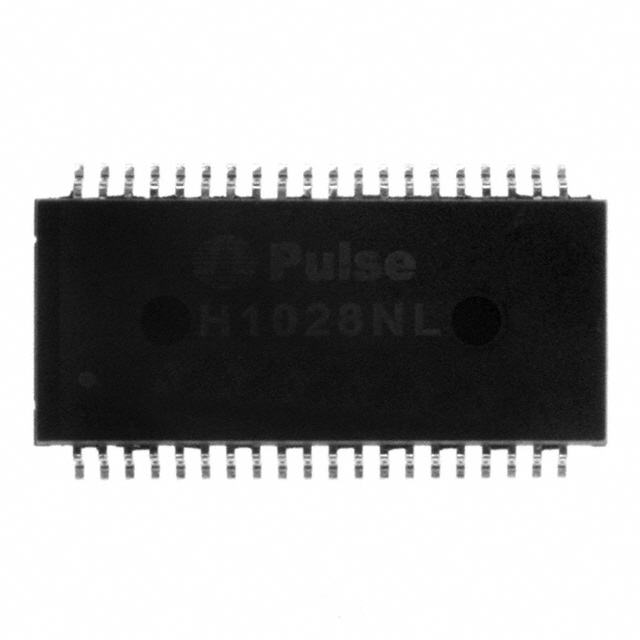

H1028NL Pulse
Same model may have multiple batches, images only for reference.

H1028NL

Part No H1028NL
Manufacturer Pulse
Catalog Pulse Transformers
Description MODULE XFRMR DL ETHER LAN 40SOIC / LAN Pulse Transformer 1CT:1CT Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Obsolete
Transformer Type LAN
Mounting Type Surface Mount
Size / Dimension 1.125" L x 0.485" W (28.58mm x 12.32mm)
Height - Seated (Max) 0.230" (5.84mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 15 pcs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 139590-H1028NL
Ultra Librarian 3D Model Ultra Librarian H1028NL CAD Model

Description

The 139590-H1028NL is a pulse transformer designed for LAN applications. It has a size of 1.125" L x 0.485" W (28.58mm x 12.32mm) and a height of 0.230" (5.84mm). This transformer is suitable for surface mount mounting and comes in a tube package. The 139590-H1028NL is an obsolete product with a standard package quantity of 15 pcs. It operates within a temperature range of 0°C to 70°C and is unaffected by REACH regulations. This pulse transformer is widely used in LAN applications for data transmission.
