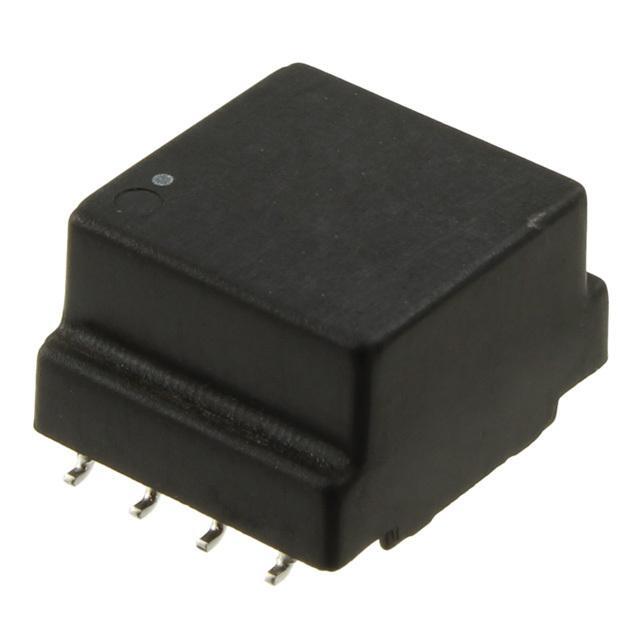

PE-65812FNL Pulse
Same model may have multiple batches, images only for reference.

PE-65812FNL

Part No PE-65812FNL
Manufacturer Pulse
Catalog Specialty Transformers
Description XFRMR DIGITAL AUDIO 1:1 2.5MH
Datasheet
PE-65812FNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Specialty Transformers
Mfr Pulse
Package Tube
Product Status Active
Inductance 2.5 mH
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.566" W (12.70mm x 14.37mm)
Height - Seated (Max) 0.340" (8.64mm)
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 272163-PE-65812FNL
Ultra Librarian 3D Model Ultra Librarian PE-65812FNL CAD Model

Description

The 272163-PE-65812FNL is a specialty transformer from Pulse.

  • Category: Transformers - Specialty Transformers
  • Packaging: Tube
  • Dimension: 0.500" L x 0.566" W (12.70mm x 14.37mm)
  • Inductance: 2.5 mH
  • Seated Height: 0.340" (8.64mm)
  • Mounting: Surface mount
  • Standard Package: 40 pcs
  • ECCN: EAR99
  • REACH: Unaffected
  • Operating Temperature: Not specified
