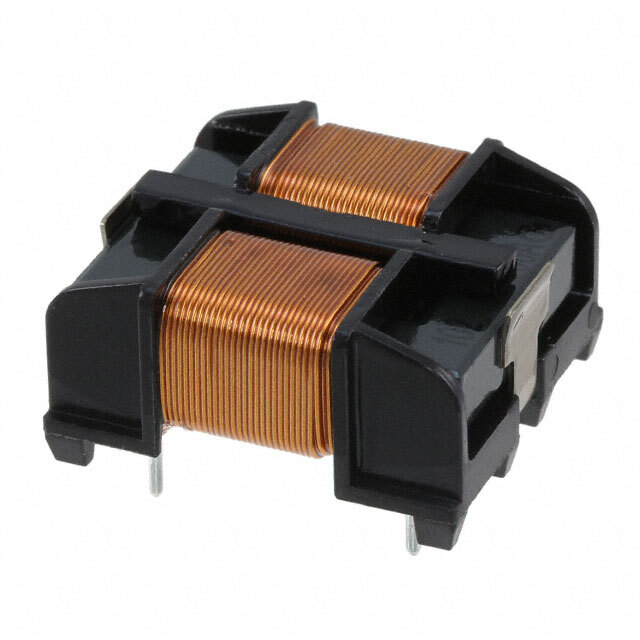

Same model may have multiple batches, images only for reference.
PM3700-70-RC Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PM3700-70-RC

Part No PM3700-70-RC
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 10MH 1.5A 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Lines 2
Inductance @ Frequency 10 mH @ 1 kHz
Current Rating (Max) 1.5A
DC Resistance (DCR) (Max) 150mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max) 0.450" (11.43mm)
Case / Package Horizontal, 4 PC Pad
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530560-PM3700-70-RC
Ultra Librarian 3D Model Ultra Librarian PM3700-70-RC CAD Model

Description

N
