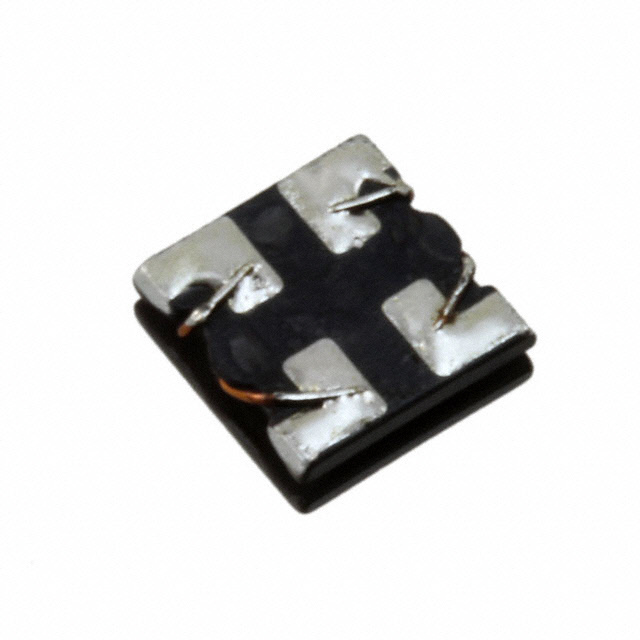

Same model may have multiple batches, images only for reference.
DR221-474AE Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DR221-474AE

Part No DR221-474AE
Manufacturer Bourns Inc.
Catalog Common Mode Chokes
Description CMC 470UH 100MA 2LN SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Filter Type Signal Line
Number of Lines 2
Inductance @ Frequency 470 µH @ 10 kHz
Current Rating (Max) 100mA
DC Resistance (DCR) (Max) 350mOhm
Voltage Rating - DC 50V
Voltage Rating - AC 100V
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Size / Dimension 0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max) 0.130" (3.30mm)
Case / Package Horizontal, 4 Flat Lead
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1530526-DR221-474AE
Ultra Librarian 3D Model Ultra Librarian DR221-474AE CAD Model
