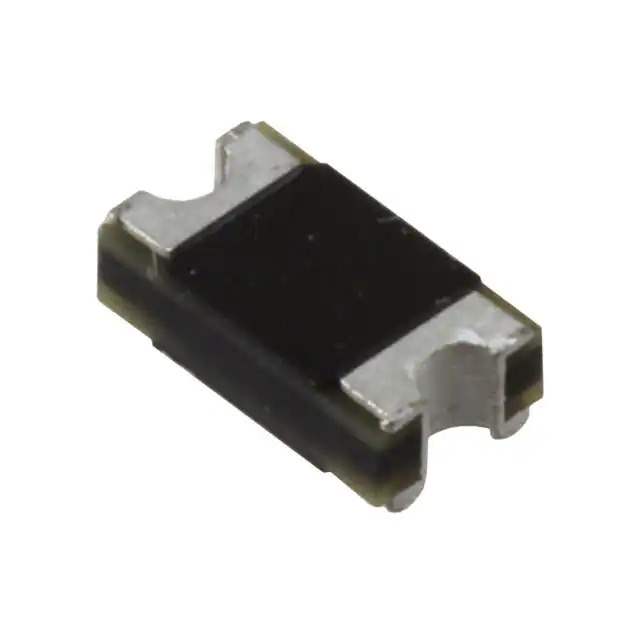

Same model may have multiple batches, images only for reference.

CD1408-R1800

Name: CD1408-R1800
Brand: Bourns Inc.
SKU: 576794
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CD1408-R1800
Manufacturer	Bourns Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE GEN PURP 800V 1A 1408
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Bourns Inc.
Package	Tape & Reel
Product Status	Active
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	800 V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1 V @ 1 A
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3 µs
Current - Reverse Leakage @ Vr	1 µA @ 800 V
Capacitance @ Vr, F	12pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	Chip, Concave Terminals
Supplier Device Package	1408
Operating Temperature - Junction	-65°C ~ 175°C
Base Product Number	CD1408
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8541.10.0080
California Prop 65	Warning Information
Win Source Part Number	576794-CD1408-R1800
Ultra Librarian 3D Model	Ultra Librarian CD1408-R1800 CAD Model

Description

The CD1408-R1800 is a standard recovery diode designed for rectification applications.

Maximum DC Reverse Voltage: 800V
Average Rectified Current: 1A
Forward Voltage Drop: 1V @ 1A
Reverse Recovery Time: 3µs
Reverse Leakage Current: 1µA @ Maximum Reverse Voltage
Capacitance: 12pF @ 4V and 1MHz
