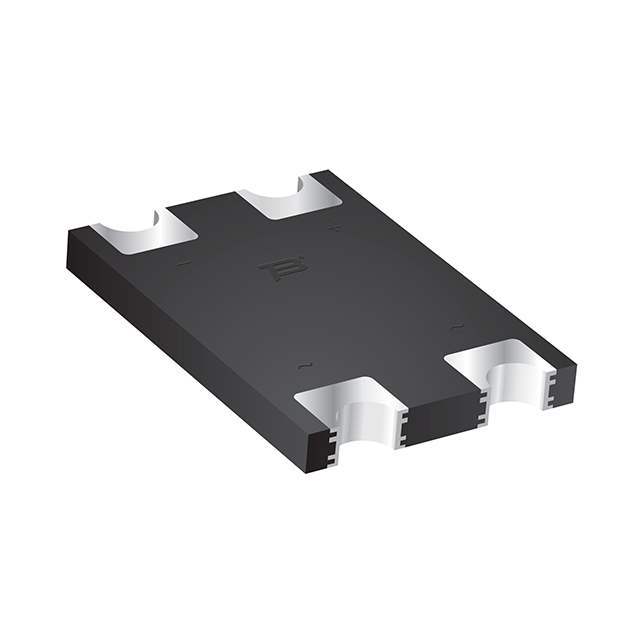

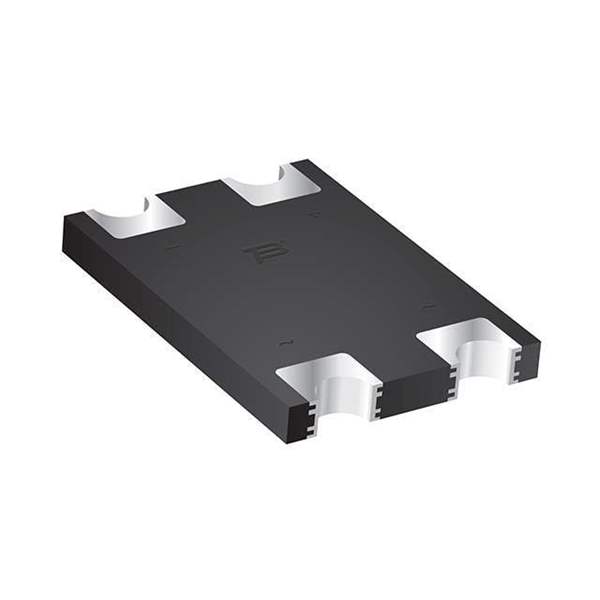

Product photo
Same model may have multiple batches, images only for reference.

Description

The markets of portable communications, computing and video equipment are challenging the semiconductor industry to develop increasingly smaller electronic components. Bourns offers Schottky Bridge Rectifier Diodes for rectification applications in compact chip package 0.24 ˝ x 0.19 ˝ size format, which offers PCB real estate savings and are considerably smaller than standard parts. The Schottky Bridge Rectifier Diodes offer a forward current of 1 A with a choice of repetitive peak reverse voltages between 40 V and 100 V.
