Same model may have multiple batches, images only for reference.

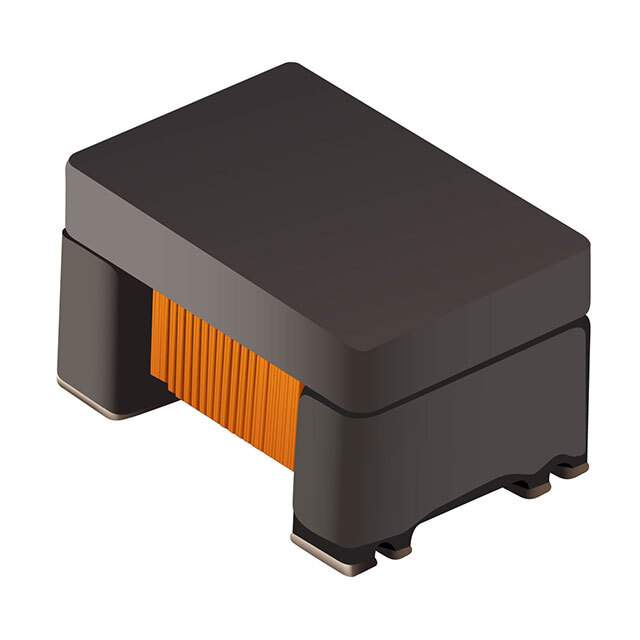

SM453229-231N7Y Real Image
Same model may have multiple batches, images only for reference.

SM453229-231N7Y

Part No SM453229-231N7Y
Manufacturer Bourns Inc.
Catalog Pulse Transformers
Description CHIP LAN,10/100/1G XFORMER,POE,4 / 200µH LAN 10/100/1000 Base-T, Power over Ethernet (PoE) Pulse Transformer 1:1 Surface Mount
Datasheet
SM453229-231N7Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Bourns Inc.
Series SM
Package Tape & Reel
Transformer Type LAN 10/100/1000 Base-T, Power over Ethernet (PoE)
Inductance 200µH
Mounting SMD (SMT)
Height - Seated (Max) 0.114" (2.90mm)
Temperature Range - Operating -40°C ~ 85°C
Base Product Number SM453229
Other Names SM453229-231N7YTR,SM453229-231N7YDKR,SM453229-231N7YCT
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1232757-SM453229-231N7Y
Ultra Librarian 3D Model Ultra Librarian SM453229-231N7Y CAD Model

Description

The SM453229-231N7Y transformer from Bourns Inc. is a LAN 10/100/1000 Base-T, power over Ethernet (PoE) transformer with a 200µH inductance and a height-seated (max) of 0.114" (2.90mm).

  • Inductance: 200µH
  • Height-Seated (Max): 0.114" (2.90mm)
  • Standard Package: 2,000
  • Mounting: SMD (SMT) technology
  • ECCN: EAR99
  • REACH: Unaffected
  • Temperature Range: -40°C to 85°C
  • ET (Volt-Time): -
  • HTSUS: 8504.31.2000
  • Other Names: SM453229-231N7YTR, SM453229-231N7YDKR, and SM453229-231N7YCT
