Same model may have multiple batches, images only for reference.

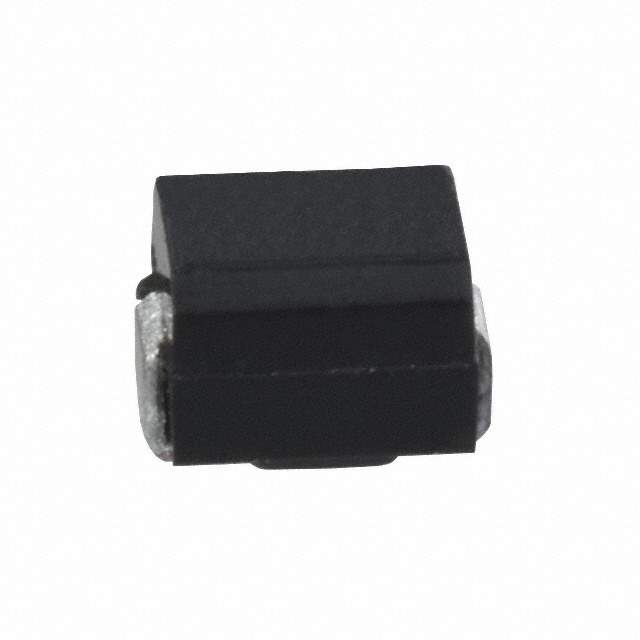

PM1210-270J-RC Real Image
Same model may have multiple batches, images only for reference.

PM1210-270J-RC

Part No PM1210-270J-RC
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 27UH 90MA 5 OHM SMD / 27 µH Unshielded Drum Core, Wirewound Inductor 90 mA 5Ohm Max 1210 (3225 Metric)
Datasheet
PM1210-270J-RC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Bourns Inc.
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 27 µH
Tolerance ±5%
Current Rating (Amps) 90 mA
Shielding Unshielded
DC Resistance (DCR) 5Ohm Max
Q @ Freq 30 @ 2.52MHz
Frequency - Self Resonant 22MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2.52 MHz
Mounting Surface Mount
Case / Package 1210 (3225 Metric)
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.087" (2.20mm)
Base Product Number PM1210
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 2,000
Win Source Part Number 1327855-PM1210-270J-RC
Ultra Librarian 3D Model Ultra Librarian PM1210-270J-RC CAD Model

Description

This is a Bourns Inc. fixed inductor with an inductance of 27 µH and a current rating of 90 mA.

  • Inductance: 27 µH
  • Current Rating: 90 mA
  • Tolerance: ±5%
  • DC Resistance (DCR): 5 Ohm max
  • Core Type: Drum core, wirewound
  • Shielding: Unshielded
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.087" (2.20mm)
  • Mounting Type: Surface mountable
  • Packaging: Reel
  • Standard Package: 2,000
  • REACH: REACH unaffected
  • ROHS: ROHS3 compliant
