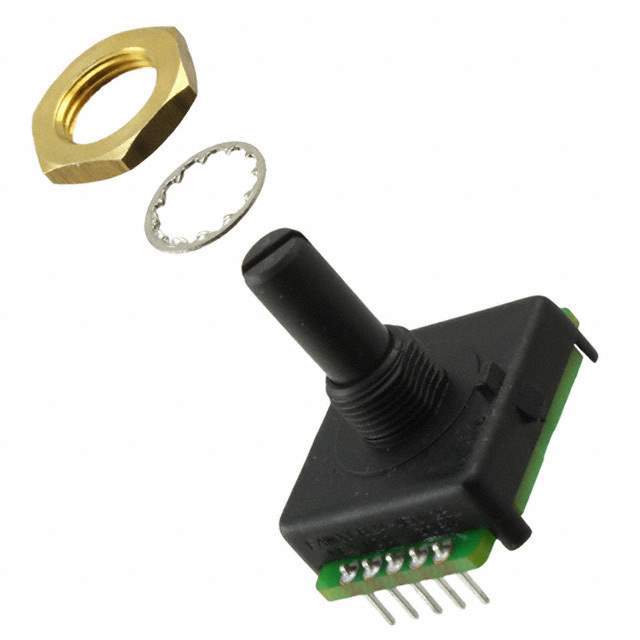

EAW0J-B24-AE0128L Real Image
Same model may have multiple batches, images only for reference.

EAW0J-B24-AE0128L

Part No EAW0J-B24-AE0128L
Manufacturer Bourns Inc.
Catalog Encoders
Description ROTARY ENCODER MECHANICAL 128PPR / Rotary Encoder Mechanical 128 Binary (Absolute) Vertical
Datasheet
EAW0J-B24-AE0128L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders
Mfr Bourns Inc.
Series ACE™
Package Tray
Encoder Type Mechanical
Output Type Binary (Absolute)
Pulses per Revolution 128
Actuator Type 1/4" Dia Slotted End
Detent No
Built in Switch No
Mounting Type Panel, PCB Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 50K
Base Product Number EAW0J
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
California Prop 65 Warning Information
Win Source Part Number 1351061-EAW0J-B24-AE0128L
Ultra Librarian 3D Model Ultra Librarian EAW0J-B24-AE0128L CAD Model

Description

The ACE™ series is a mechanical type of encoder manufactured by Bourns Inc.

  • Series: ACE™
  • Termination Style: PC Pin
  • Package: Tray
  • Standard Package: 45
  • Output Type: Binary (Absolute)
  • Actuator Type: 1/4" Dia Slotted End
  • Encoder Type: Mechanical
  • Pulses per Revolution: 128
  • Detent: No
  • Rotational Life: 50K cycles min
  • Voltage Supply: -
  • Mounting: Panel or PCB Through-Hole
  • Application: Sensors and Transducers-Encoders
