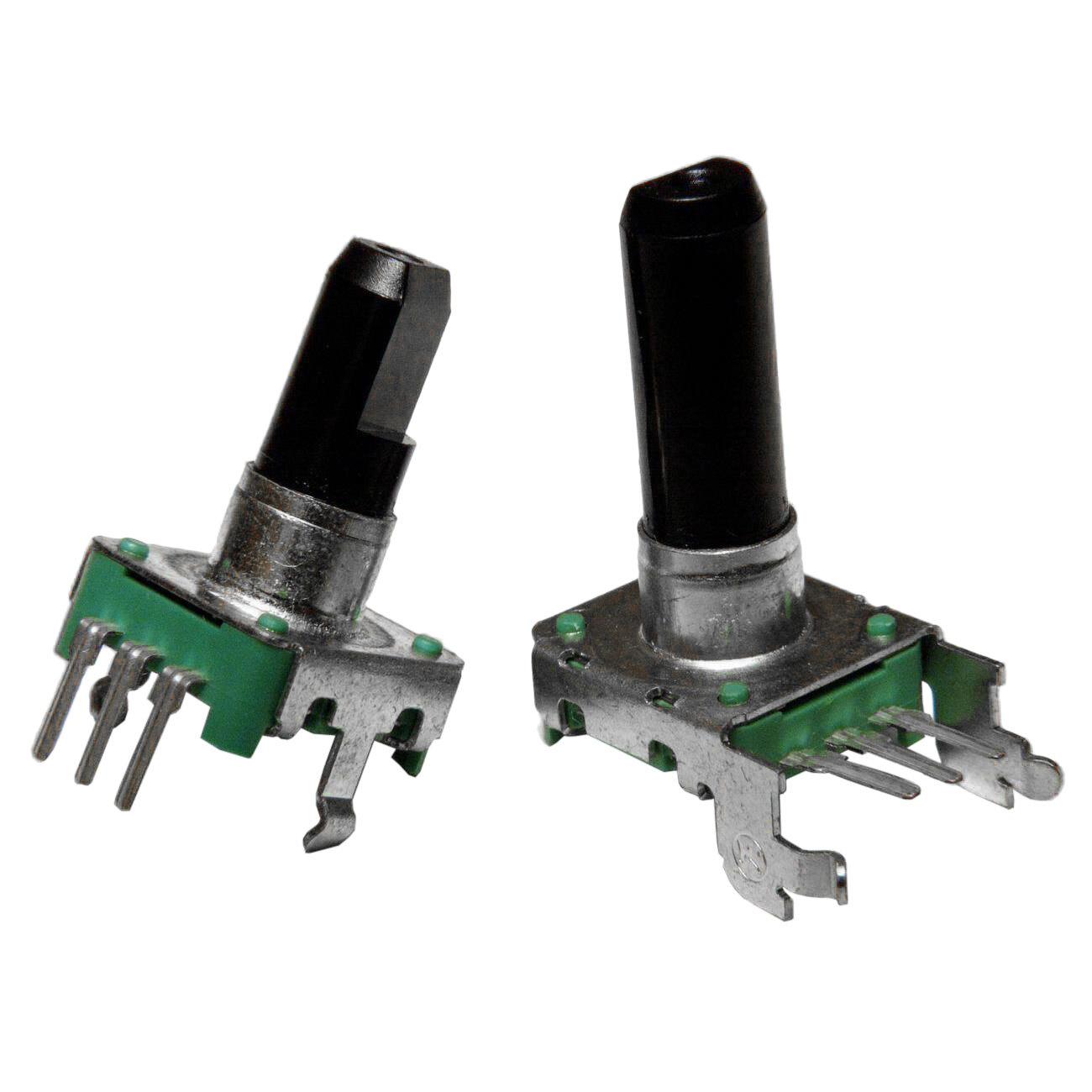

Same model may have multiple batches, images only for reference.
EC1110120005 ALPS Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EC1110120005

Part No EC1110120005
Manufacturer ALPS Electric
Catalog Encoders
Description ENCODER INCREM QUAD VERT PC PIN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Encoder Type Incremental
Output Type Quadrature (Incremental)
Voltage - Supply 5V
Actuator Type 4.5mm Dia Flatted End
Detent No
Built in Switch No
Mounting Type PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 15K
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1548020-EC1110120005
Ultra Librarian 3D Model Ultra Librarian EC1110120005 CAD Model

Description

N
