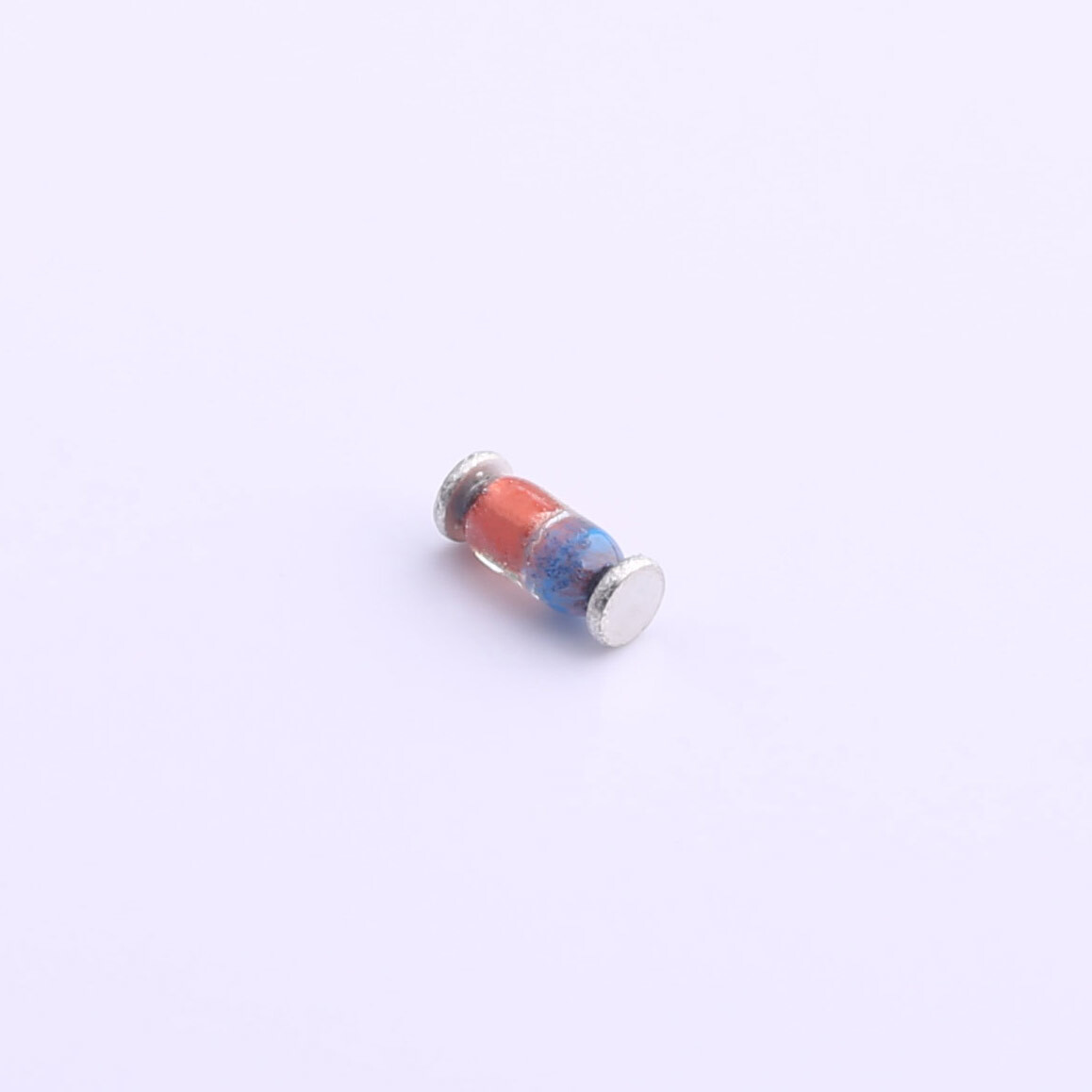

Same model may have multiple batches, images only for reference.
ZMM24 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ZMM24

Part No ZMM24
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes - Zener - Single
Description Independent Type 22.8V~25.6V 500mW 24V LL-34
Datasheet
ZMM24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1330039-ZMM24
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Voltage - Zener (Nom) (Vz) 24V
Tolerance ±5%
Power - Max 500mW
Impedance (Max) (Zzt) 70 Ohms
Current - Reverse Leakage @ Vr 100nA @ 18V
Operating Temperature -50°C ~ 175°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-213AC, MINI-MELF, SOD-80
Supplier Device Package SOD-80C
Tolerance ±5.83%
Impedance (Max) (Zzt) 80 Ohms
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Operating Temperature 175°C (TJ)
Supplier Device Package LL-34
Ultra Librarian 3D Model Ultra Librarian ZMM24 CAD Model
