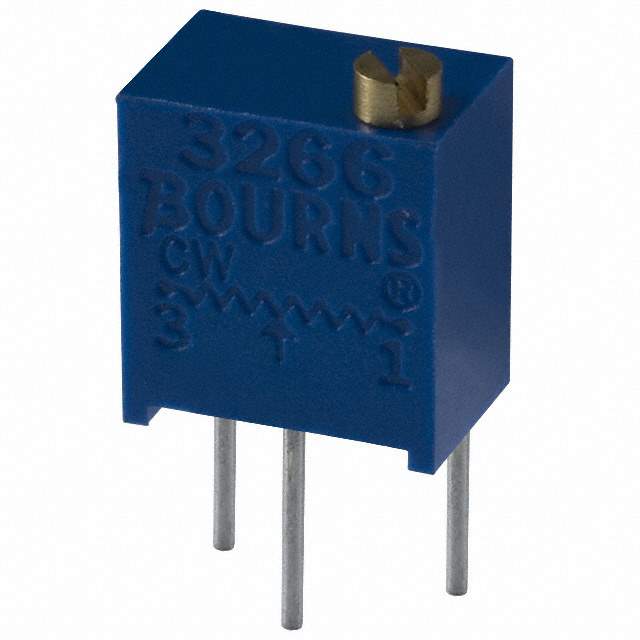

Same model may have multiple batches, images only for reference.

3266W-1-100LF

Name: 3266W-1-100LF
Brand: Bourns Inc.
SKU: 1116450
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	3266W-1-100LF
Manufacturer	Bourns Inc.
Catalog	Potentiometers, Variable Resistors
Description	TRIMMER 10 OHM 0.25W PC PIN TOP / 10 Ohms 0.25W, 1/4W PC Pins Through Hole Trimmer Potentiometer Cermet 12.0 Turn Top Adjustment
Datasheet	3266W-1-100LF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Potentiometers, Variable Resistors>Trimmer Potentiometers
Mfr	Bourns Inc.
Series	Trimpot® 3266 - Sealed
Package	Tube
Resistance	10 Ohms
Power (Watts)	0.25W, 1/4W
Tolerance	±10%
Temperature Coefficient	±100ppm/°C
Number of Turns	12
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting Type	Through Hole
Termination Style	PC Pins
Dimension	Rectangular - 0.250" x 0.170" Face (6.35mm x 4.32mm)
Base Product Number	3266W
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8533.40.8050
Other Names	3266W-100LF,3266W-1-100LF-ND,3266W1100LF
Standard Package	100
Win Source Part Number	1116450-3266W-1-100LF
Ultra Librarian 3D Model	Ultra Librarian 3266W-1-100LF CAD Model

Alternative Products

Description

The 3266W-1-100LF is a trimmer potentiometer manufactured by Bourns Inc.

Series: Trimpot® 3266 - Sealed
Adjustment Type: top adjustment
Number of Turns: 12
Resistance: 10 Ohms
Tolerance: ±10%
Power (Watts): 0.25W, 1/4W
Temperature Coefficient: ±100ppm/°C
Mounting: through-hole
Dimension: rectangular dimension of 0.250" x 0.170" face (6.35mm x 4.32mm)
Alternative to: 3266W-1-100LF and 3266W1-100LF
ECCN: EAR99
