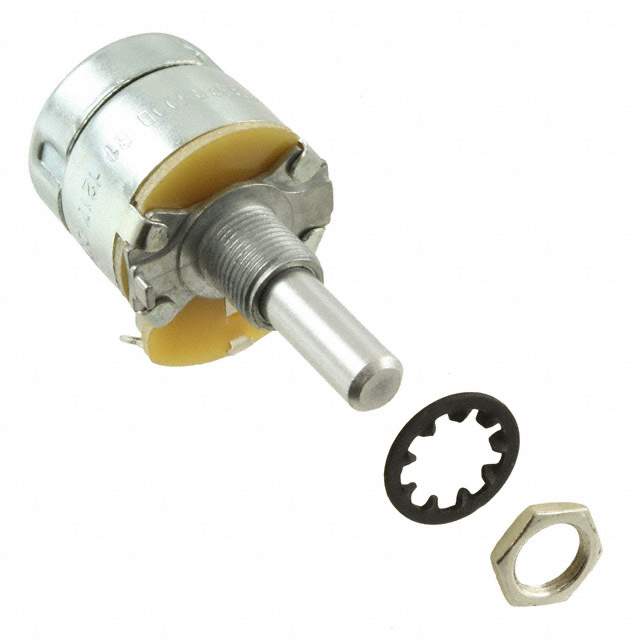

Same model may have multiple batches, images only for reference.

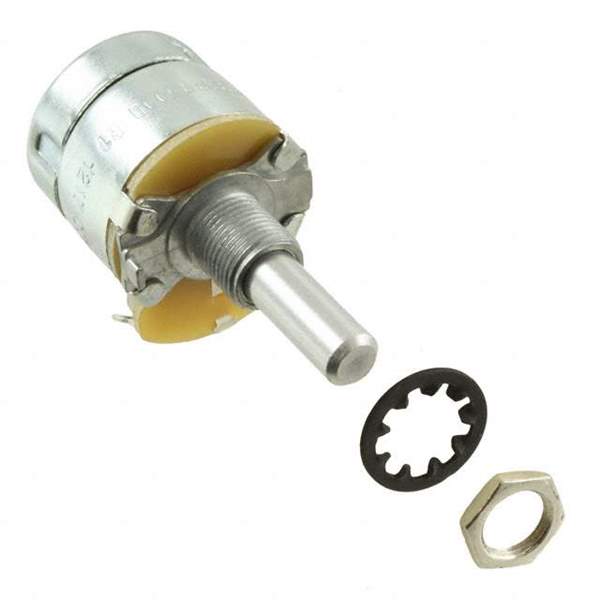

026TB32R502B1A1 Real Image
Same model may have multiple batches, images only for reference.

026TB32R502B1A1

Part No 026TB32R502B1A1
Manufacturer CTS Electrocomponents
Catalog Potentiometers, Variable Resistors
Description POT 5K OHM 5W WIREWOUND LINEAR  /  5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Wirewound 5W Solder Lug
Datasheet
026TB32R502B1A1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr CTS Electrocomponents
Series 026
Package Bulk
Resistance (Ohms) 5k
Tolerance ±20%
Power (Watts) 5W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Rotation 300°
Resistive Material Wirewound
Termination Style Solder Lug
Actuator Type Round
Actuator Length 1.000" (25.40mm)
Actuator Diameter 0.250" (6.35mm)
Bushing Thread 3/8-32
Mounting Type Panel Mount
Size - Body Round - 0.937" Dia (23.80mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.31.0000
Other Names 026TB32R5O2B1A1,CT2158,026T332R502B1A4
Standard Package 1
Win Source Part Number 1087241-026TB32R502B1A1
Ultra Librarian 3D Model Ultra Librarian 026TB32R502B1A1 CAD Model

Description

The Win Source Part Number 1087241-026TB32R502B1A1 is a 5W rotary potentiometer with a 5k resistance (ohms).

  • Termination Style: Solder lug
  • Package: Bulk
  • Tolerance: ±20%
  • Taper: Linear
  • Actuator Type: Round
  • Actuator Length: 1.000" (25.40mm)
  • Bushing Thread: 3/8-32
  • Rotation: 300°
  • Actuator Diameter: 0.250" (6.35mm)
  • HTSUS: 8533.31.0000
  • Alternative Parts: P230-1FC25BR5K, P160KNP-0FC25B5K, PDB181-E420K-502B, PDA17-SS20-502BK, P231-EC35BR5K, and PCW1J-C24-CAD502L
