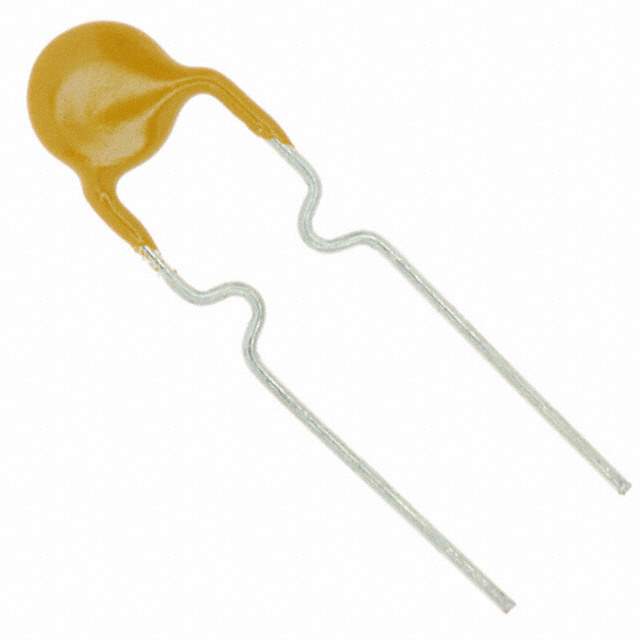

MF-R020-0-99 Real Image
Same model may have multiple batches, images only for reference.

MF-R020-0-99

Part No MF-R020-0-99
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R020-0-99 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Bulk
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 200mA
Current - Trip (It) 400mA
Time to Trip 2.2s
Resistance - Initial (Ri) (Min) 1.5 Ohm
Resistance - Post Trip (R1) (Max) 4.4 Ohm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
Height - Seated (Max) 0.500" (12.70mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003409-MF-R020-0-99
Ultra Librarian 3D Model Ultra Librarian MF-R020-0-99 CAD Model

Description

The Bourns Inc. 003409-MF-R020-0-99 is a polymeric type resettable fuse designed for circuit protection.

  • Approvals: cURus and TUV
  • Maximum Voltage: 60V
  • Maximum Current: 40A
  • Mounting: Through-hole
  • Dimension: 0.291" Dia x 0.122" W (7.40mm x 3.10mm)
  • Temperature Range: -40°C to 85°C
  • Resistance: 1.5 Ohm (initial) and 4.4 Ohm (post trip)
  • Typical Resistance @ 25°C: No typical resistance
  • Category: Circuit protection
  • Production: Currently in active production
  • Supply and Demand Status: Limited
