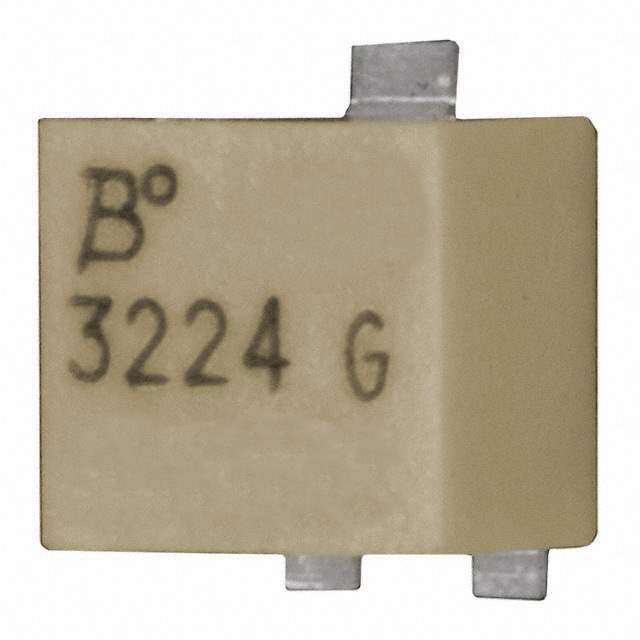

3224G-1-502E Real Image
Same model may have multiple batches, images only for reference.

3224G-1-502E

Part No 3224G-1-502E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 5K OHM 0.25W SMD
Datasheet
3224G-1-502E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 5k
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 12
Adjustment Type Side Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style Gull Wing
Dimension Rectangular - 0.181" x 0.138" Face x 0.154" H (4.60mm x 3.50mm x 3.90mm)
Win Source Part Number 006031-3224G-1-502E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 3224G-1-502E CAD Model

Description

3224G-1-502E Trimmer Potentiometer

The 3224G-1-502E trimmer potentiometer features a 5k ohm resistance, providing flexible resistance adjustment for various electronics projects.

  • Versatile Use: Fits well in diverse electronic circuit applications.
  • Sturdy Design: Manufactured to keep performance stable under diverse conditions.
  • Simple Adjustment: Allows easy tuning through a user-friendly interface.

Applications:

  • Battery management systems
  • Test equipment
  • Consumer electronics
